Lian Li & DAN Cases A3-mATX is a versatile mATX computer case that accommodates large components while maintaining a minimal frame size. The adjustable power supply bracket allows you to build a powerful and compact PC system tailored to your needs and preferences.
Well-ventilated, minimalist design

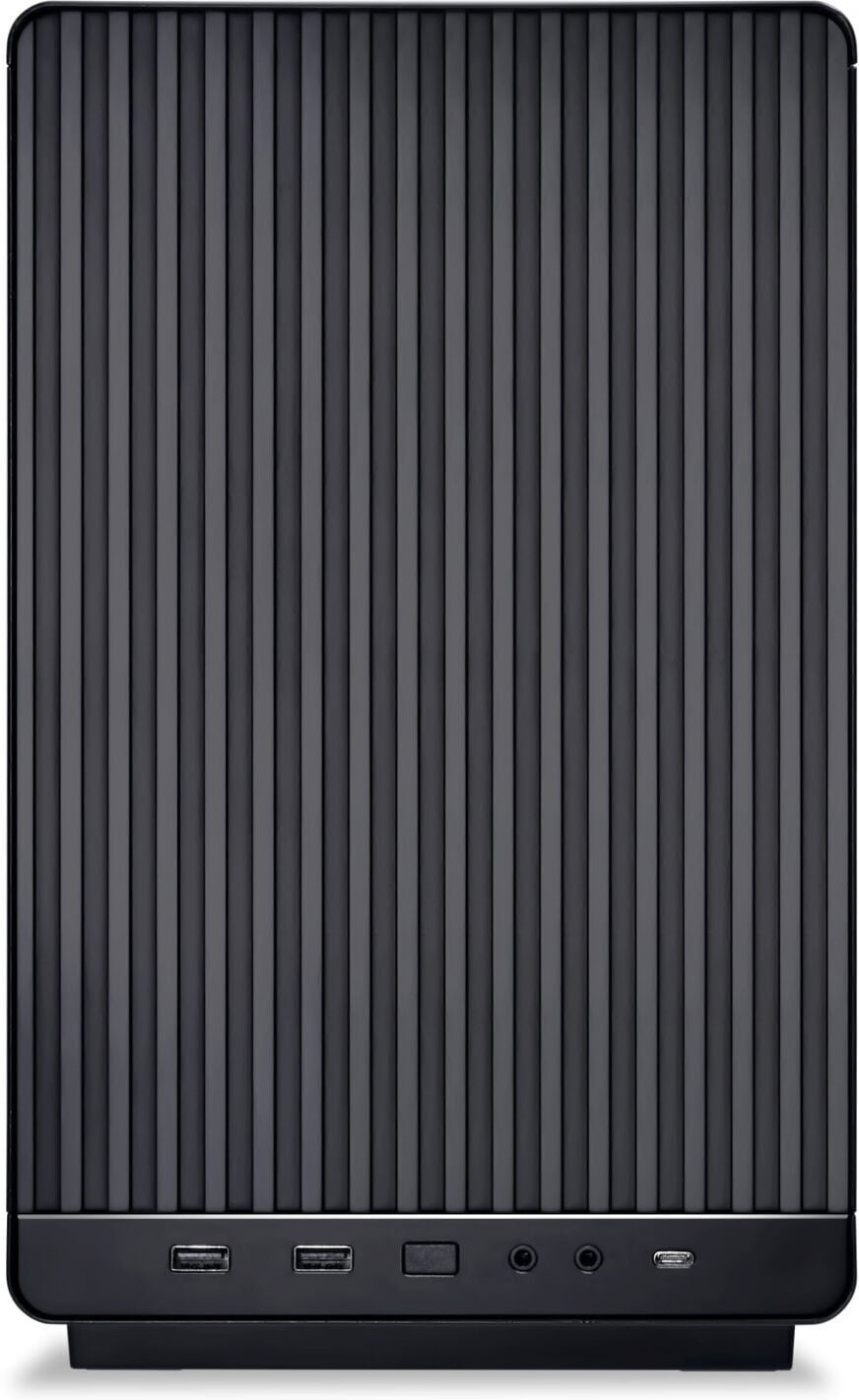

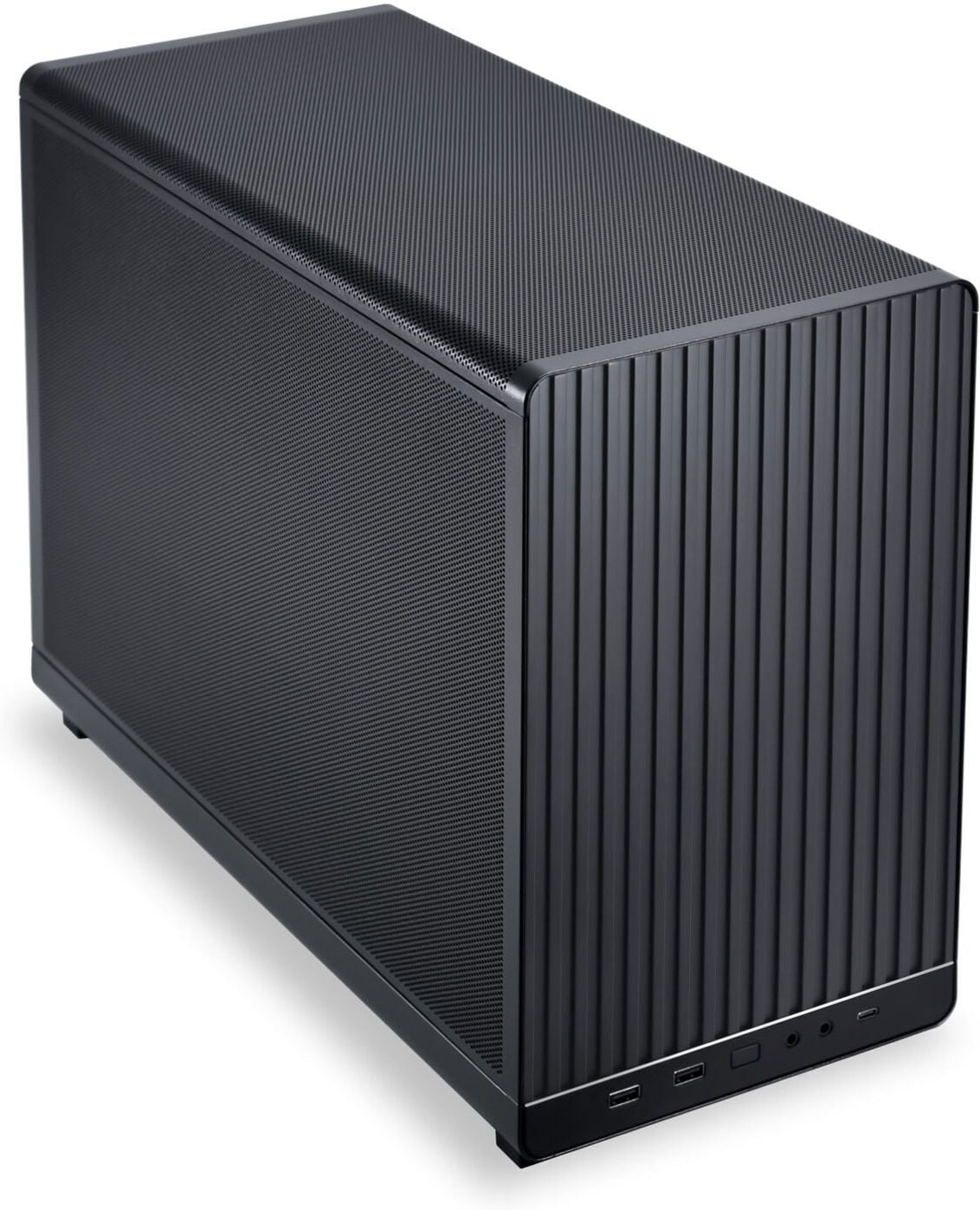

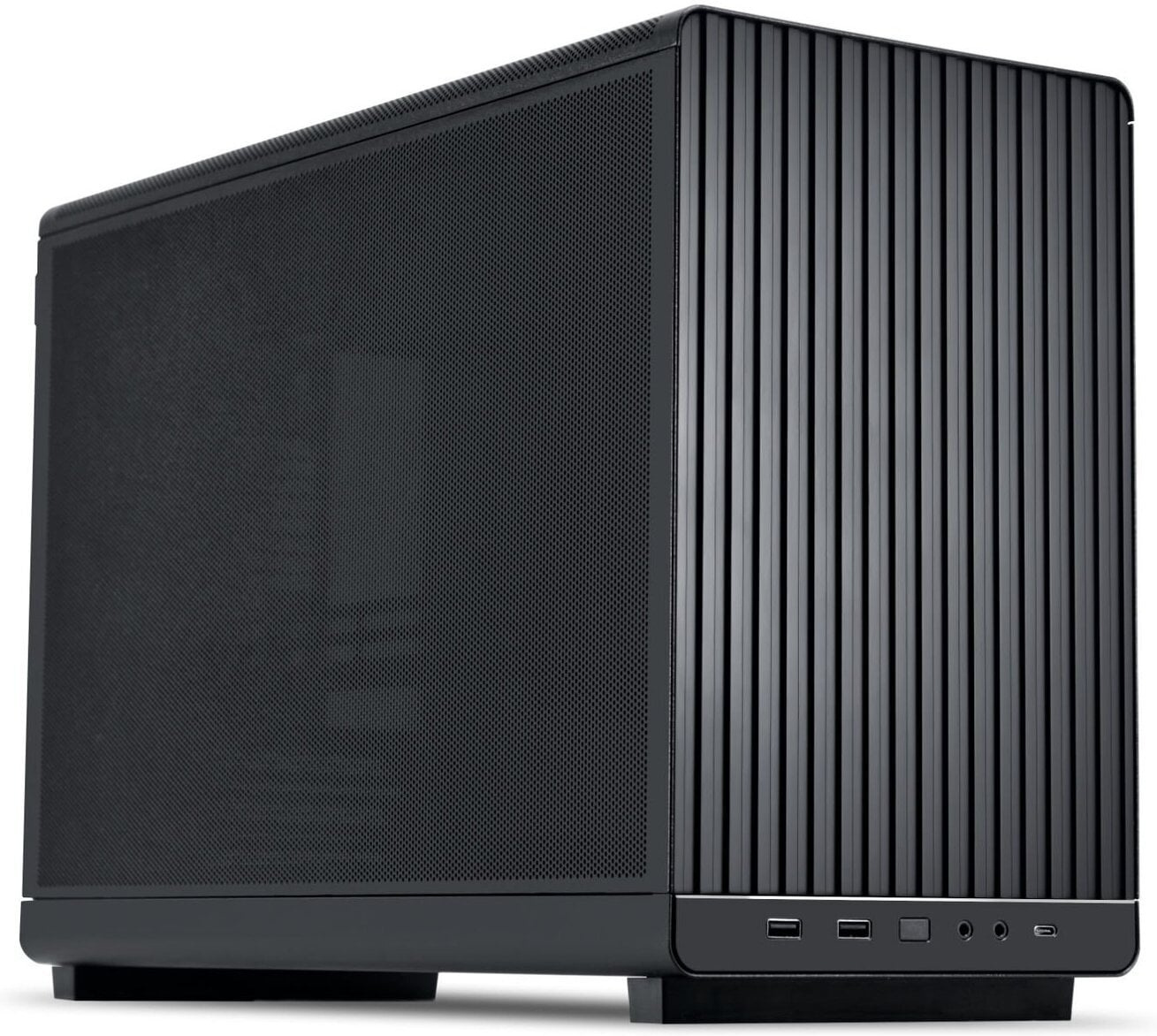

The case features minimalist mesh panels on three sides and a stylish front panel, making the A3-mATX the perfect choice for combining functionality and style.

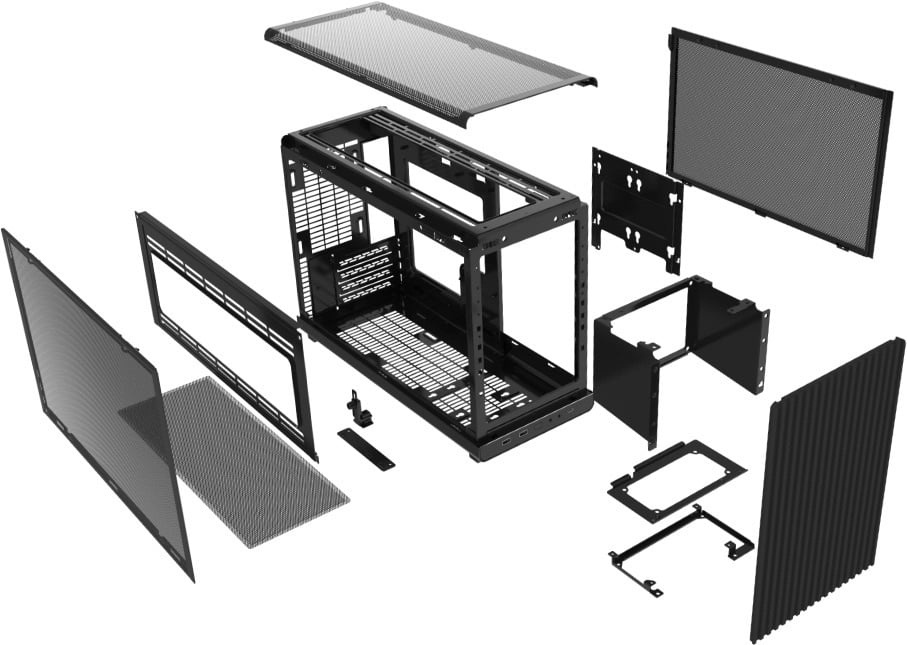

Easy modularity, hassle-free assembly The tool-free
removal of all exterior panels and modular brackets simplifies installation and cable management. A removable dust filter located at the bottom helps keep the system clean and efficient.
Versatile compatibility, complete customizability
The case offers flexible compatibility without compromising on high-performance, large-sized components. The A3-mATX case accommodates a CPU cooler up to 165 mm tall and a graphics card up to 415 mm long with a 4-slot profile. When a 25 mm thick fan is installed at the bottom, the graphics card thickness is limited to 61 mm, which allows only a 3-slot graphics card to be installed.
Flexible power supply installation
The case features multiple mounting positions for ATX/SFX/SFX-L or Lian Li Edge power supplies up to 220 mm in length, allowing for optimal placement according to your needs. Includes an ATX PSU offset bracket that allows for the installation of longer graphics cards in the F2 and F2.5 slots.
- Minimalist, stylish design in a 26.3-liter micro-form factor case

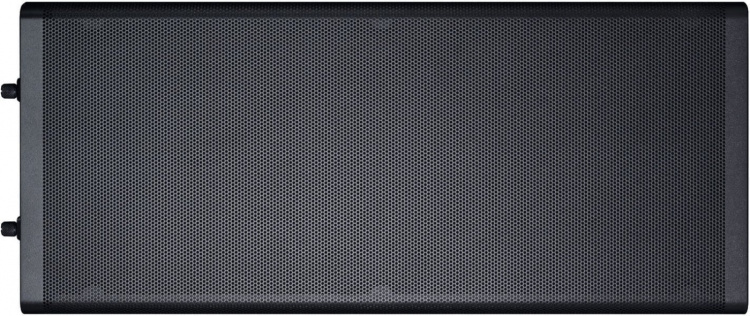

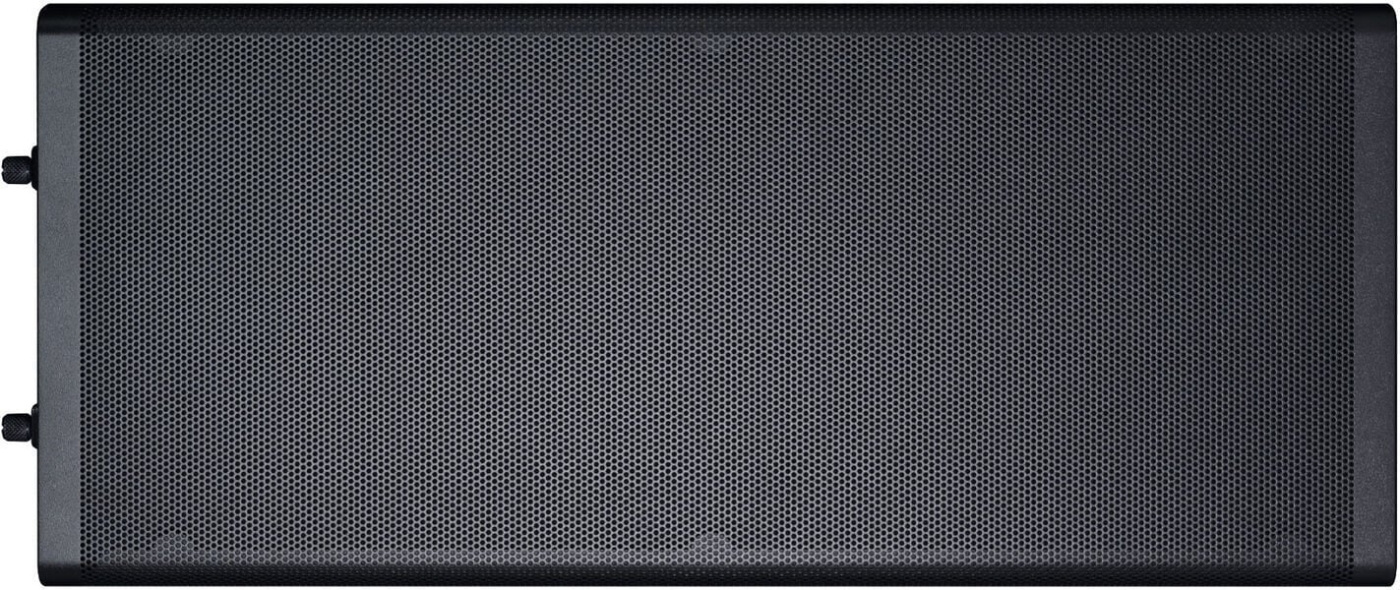

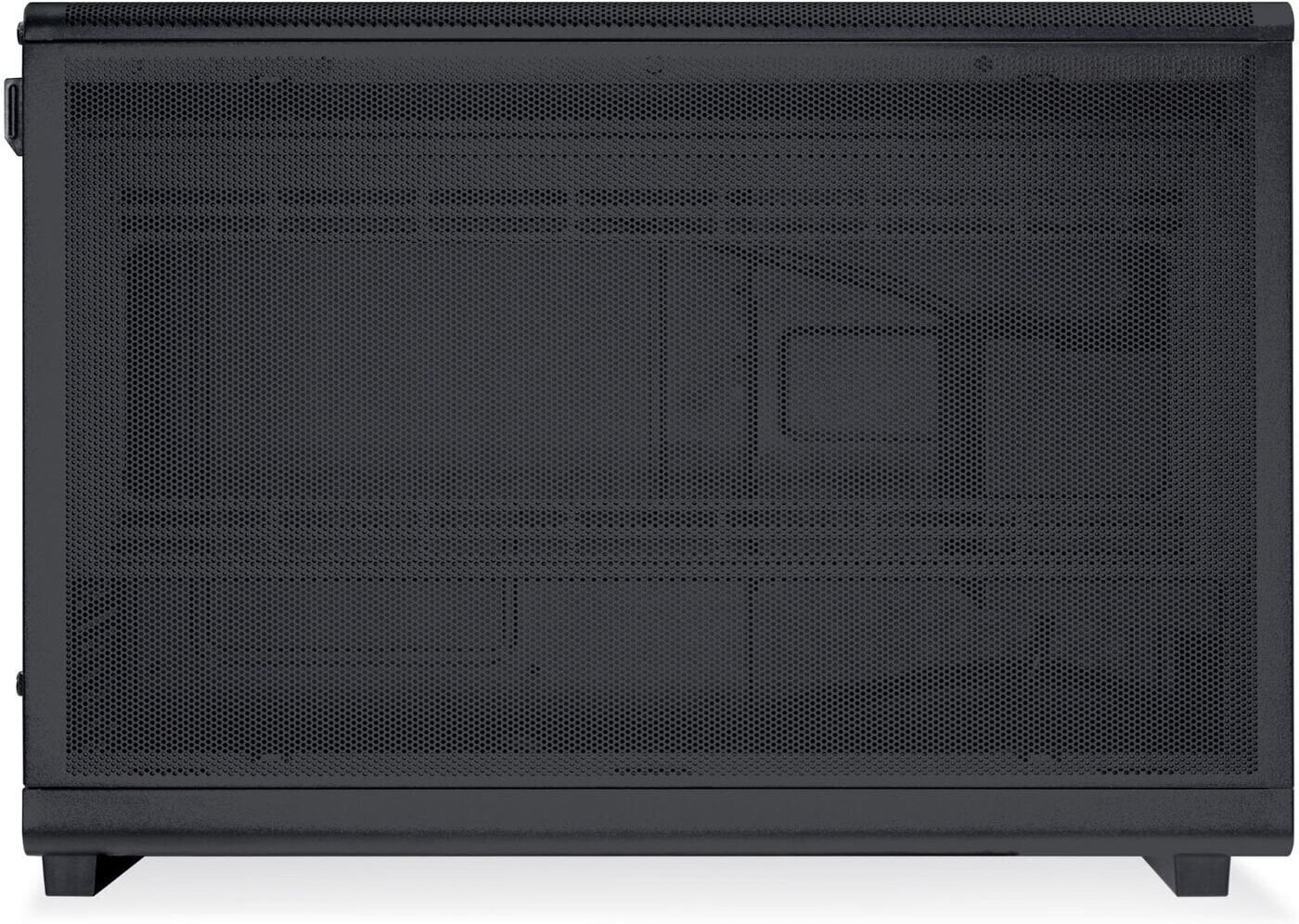

- Side and top panels are made of steel mesh
- Compatible with m-ATX and ITX motherboards
- Supports graphics cards up to 415 mm long, 360 mm radiators, and 10 x 120 mm fans

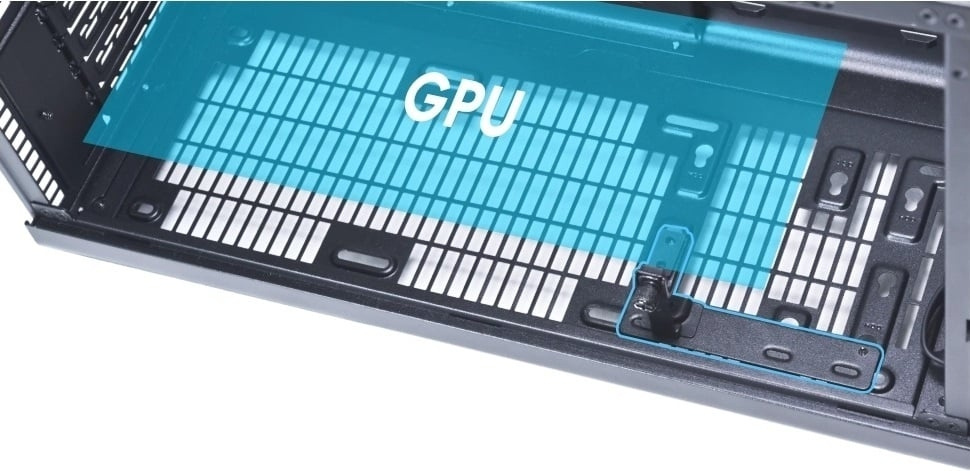

- Includes a graphics card support bracket
- Case designed in collaboration with DAN Cases, manufactured and sold by Lian Li
Features:
- Case type: MFF (Micro Form Factor)
- Material: Steel, plastic
- Internal 2.5" bays: 2 (3 if HDD bay is not in use)
- Internal 3.5" bays: 1
- Front panel ports: 2 x USB 3.0 USB-A, 1 x USB 3.1 USB-C, 1 x audio, 1 x mic
- Additional expansion slots: 4
- Maximum CPU cooler height: 165 mm
- Maximum GPU length: 415 mm*
- Maximum power supply length: 220 mm
- Dimensions: 443 x 194 x 321.5 mm
- Weight: 5 kg
- Motherboard support: Micro-ATX, Mini-ITX
- Power supply support: ATX, SFX, SFX-L
- NOTE: Fans are not included
Fan slots:
- Top: 3 x 120 mm
- Side: 3 x 120 mm / 2 x 140 mm
- Rear: 1 x 120 mm
- Bottom: 3 x 120 mm
Liquid cooler support:
- Top: 360/240 mm
- Side: 360/280/240 mm
- Bottom: 240 mm (360 mm if there is a fan at the bottom)
* If a cooler and fan combination is installed, there is no room for a graphics card
- Micro-ATX MFF case
- Modular, optimized for airflow
- Space for up to 10 fans
- Power supply position is adjustable
- ATX, SFX, SFX-L power supply support
