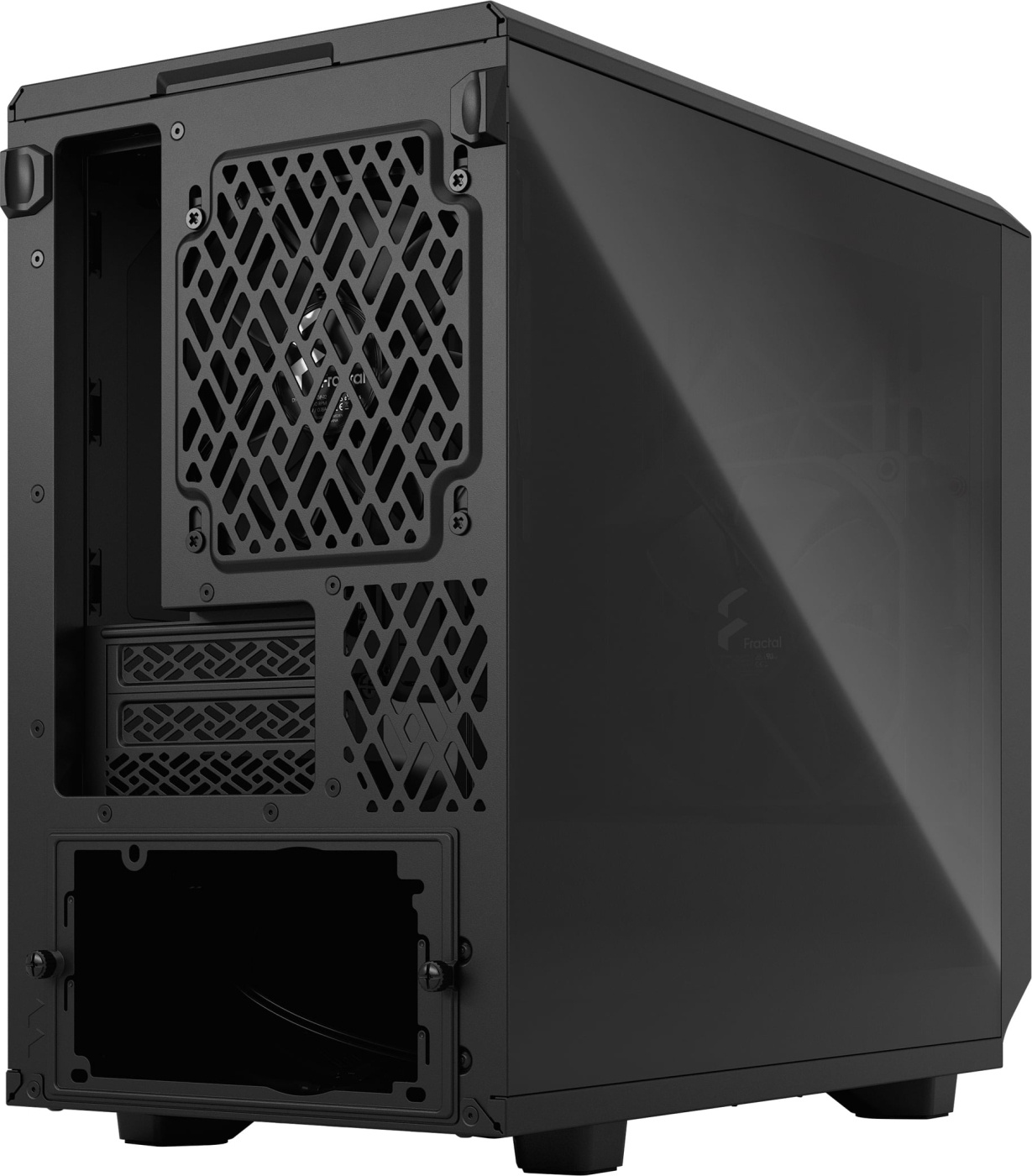

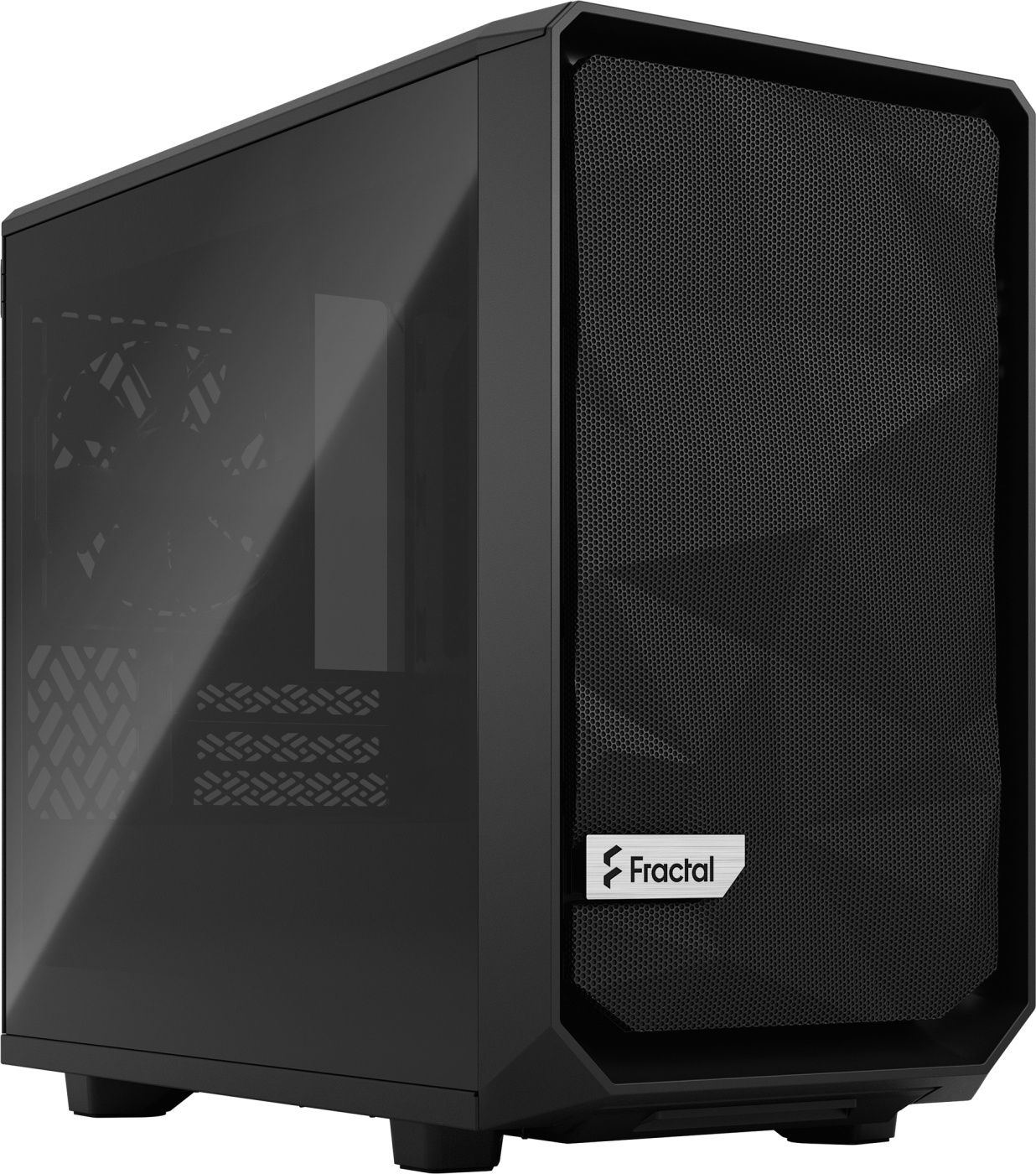

The Meshify 2 Nano offers an excellent combination of airflow and flexibility in a case optimized for the Mini-ITX form factor. Its bold yet refined design, featuring an asymmetrical, angular mesh front panel, is complemented by a tempered glass side panel and a fully removable top panel.
The compact yet spacious interior makes the most of ITX thanks to high space efficiency and robust component support. The open interior creates a smooth airflow path from the front intake to the rear exhaust. The case accommodates most Mini-ITX motherboards as well as a 331 mm-long graphics card if the front panel fans are not installed. The case can accommodate six 120 mm fans or three 140 mm fans. Flexible options for one 3.5" hard drive and three 2.5" drives.

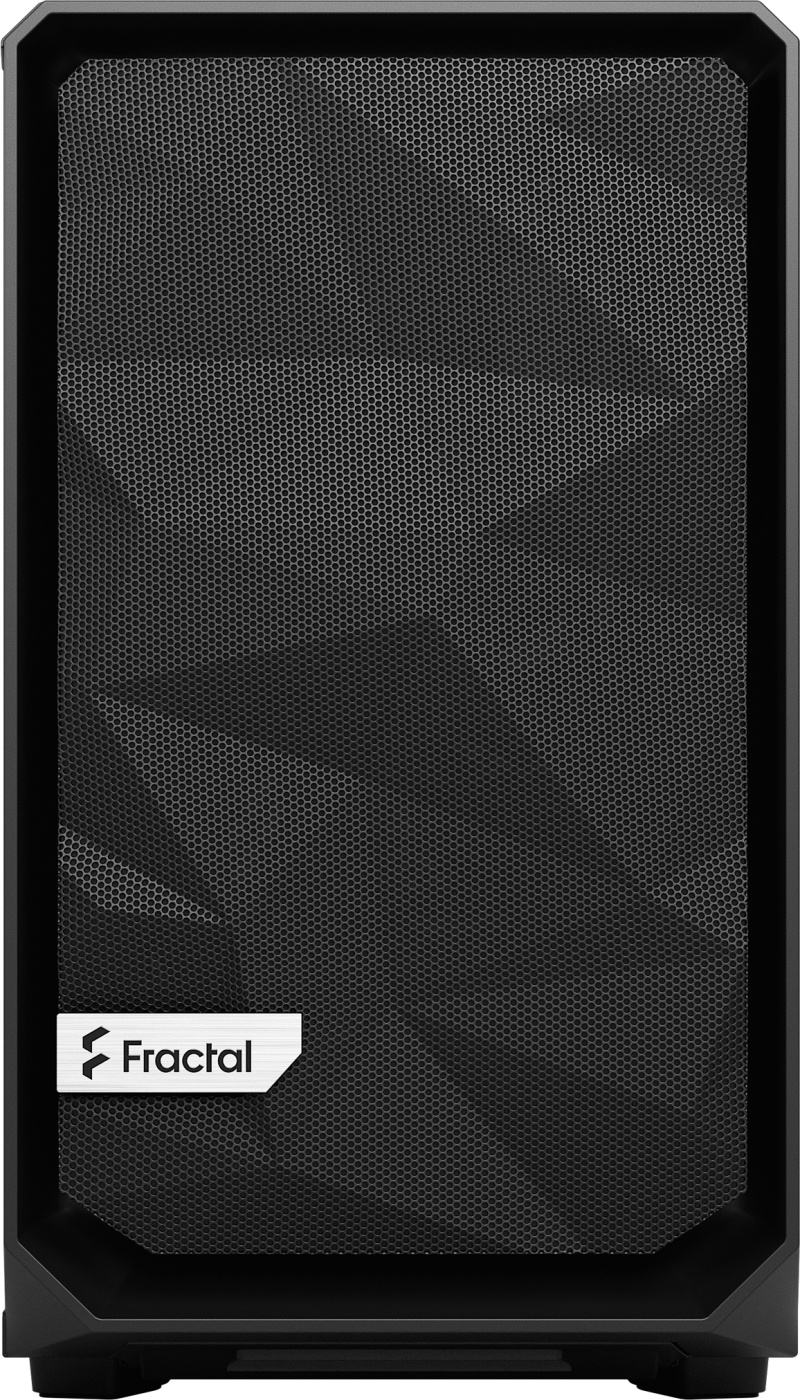

The front panel mesh frame is easily removable, and the front panel's two-layer nylon mesh can also be completely removed. The fully removable top panel and fan frame provide excellent access to the interior and easy cable routing.
Features:
- Case side panels: Steel, dark tempered glass
- Internal 2.5" bays: 1 (bracket included)
- Internal 2.5"/3.5" bays: 3 (2 cages included)
- Dimensions: 396 x 205 x 361 mm, height 345 mm without feet, protrusions, or screws

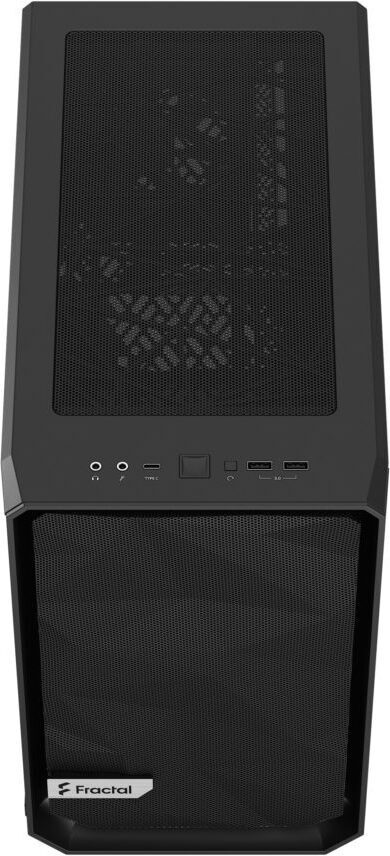

- Front panel connections: 2 x USB 3.0, Audio I/O, power button, reset button, USB 3.1 Gen2 Type-C
- Dust filters on top, front, and bottom
- Additional expansion slots: 2
- Maximum CPU cooler height: 167 mm
- Maximum GPU length: 331 mm, 306 mm with front panel fan
- Power supply support: ATX
- Maximum power supply length: 165 mm with HDD tray installed, 200 mm without HDD tray
- Weight: 5.9 kg
- Motherboard support: Mini-ITX, Mini-DTX

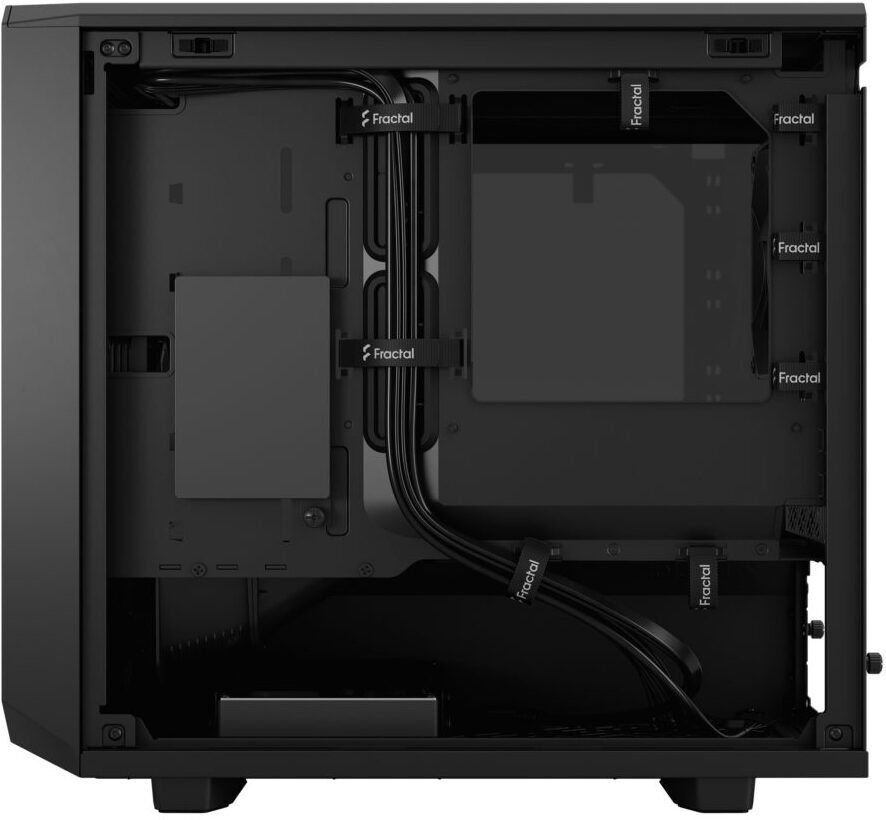

- Cable management: 15–25 mm clearance, grommets, and Velcro straps

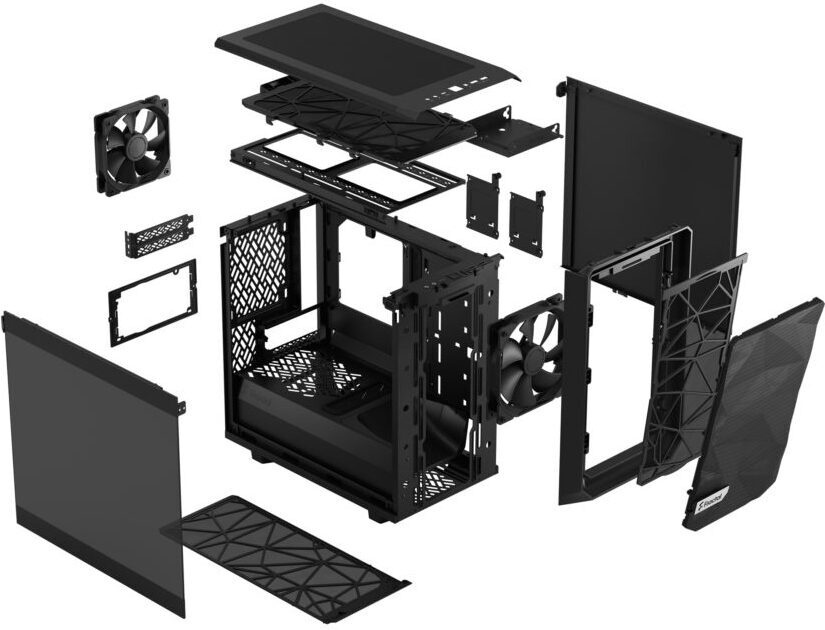

- Top, side, and front panels open without tools
- Includes 1 x Dynamic X2 GP-12 fan, 1 x Dynamic X2 GP-14 fan, and an accessory box
Fan slots:
- Front: 2 x 120 / 140 mm
- Top: 2 x 120 / 1 x 140 mm
- Bottom: 1 x 120 mm (HDD tray must be removed)

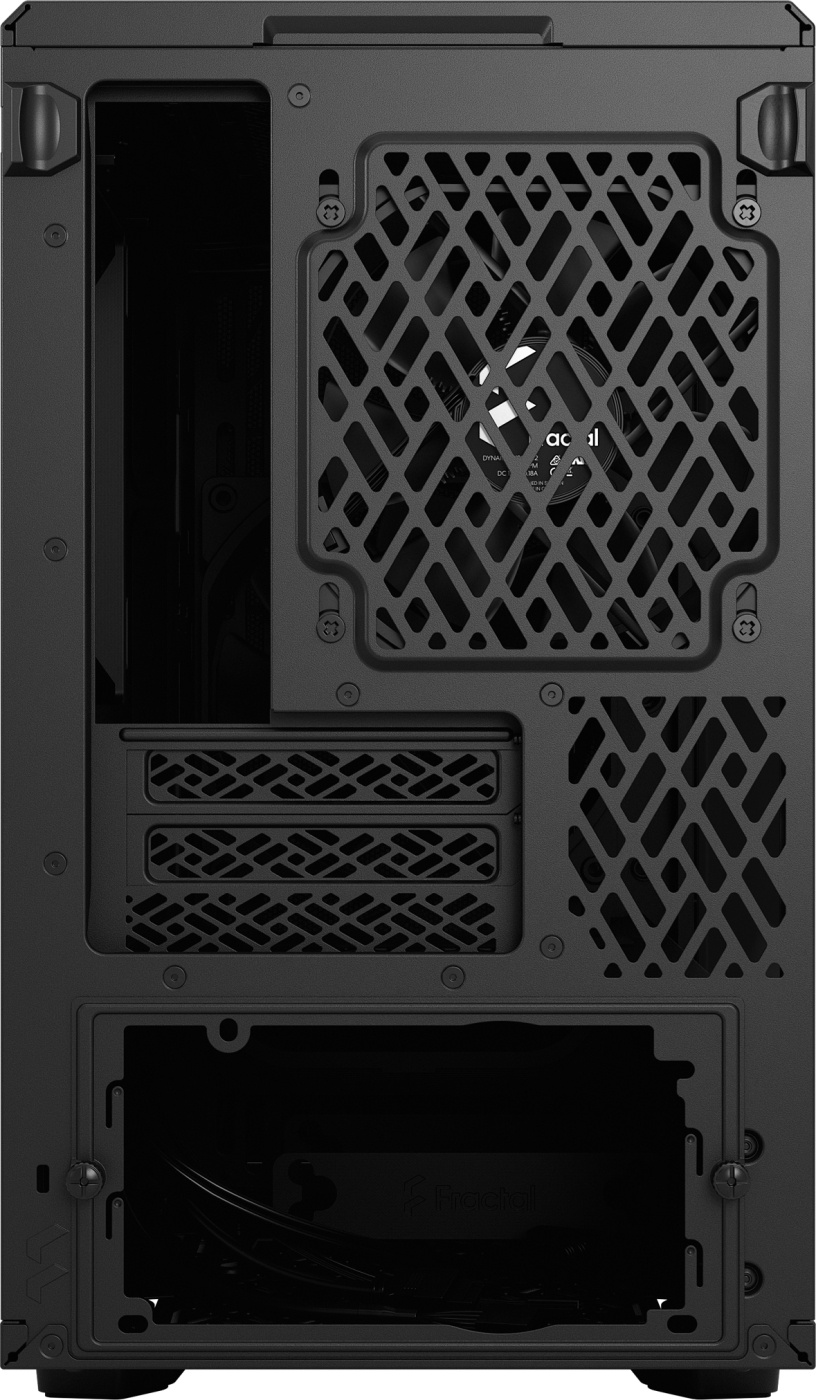

- Rear: 1 x 120 mm
Liquid cooling support:
- Front: 120 / 240 mm, 140 / 280 mm, 316 mm maximum height and 146 mm maximum width, recommended height 280 mm
- Top: -
- Bottom: -
- Rear: 120 mm
- Mini ITX case
- Includes two fans
- Front: 1 x USB-C and 2 x USB-A

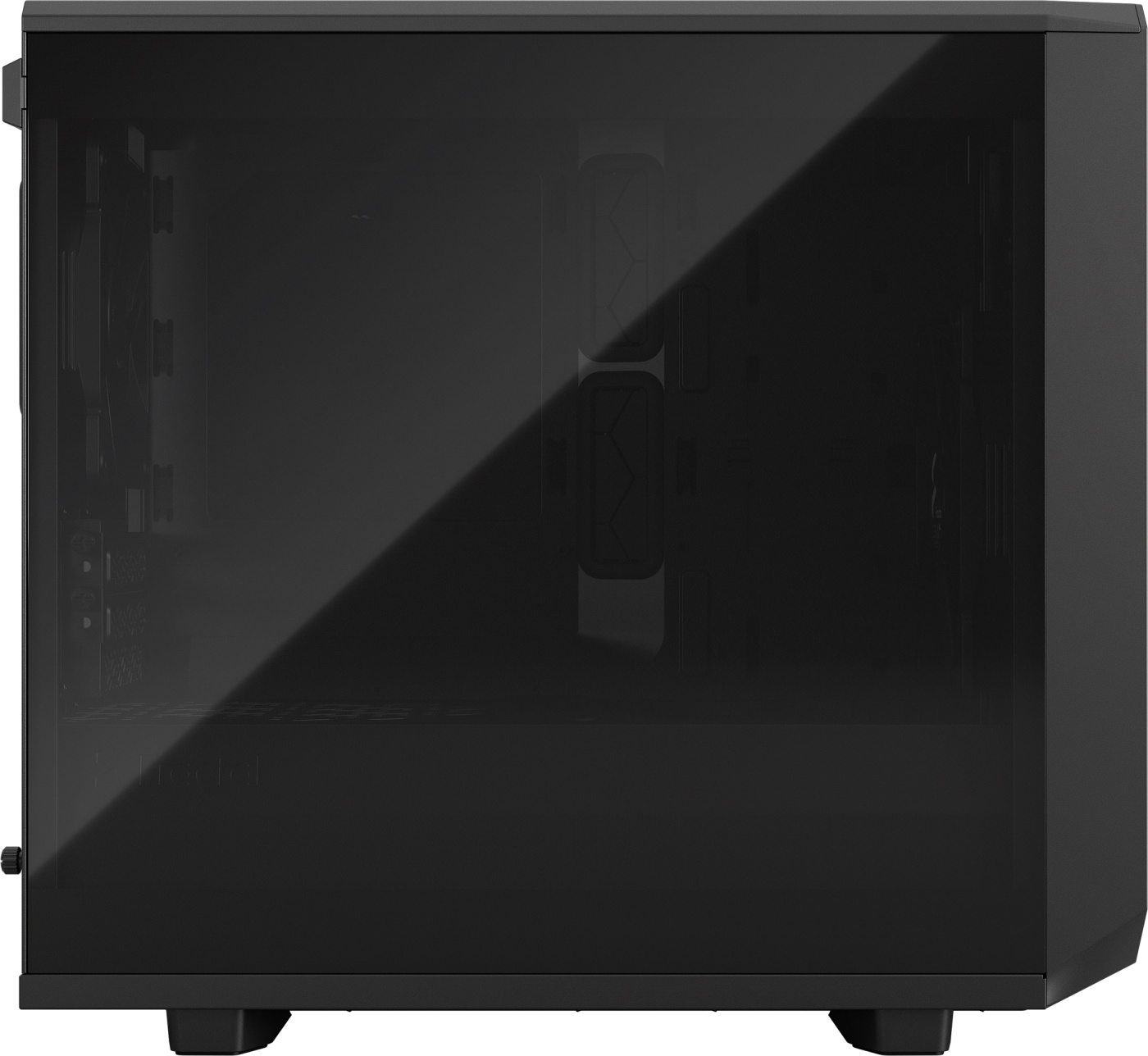

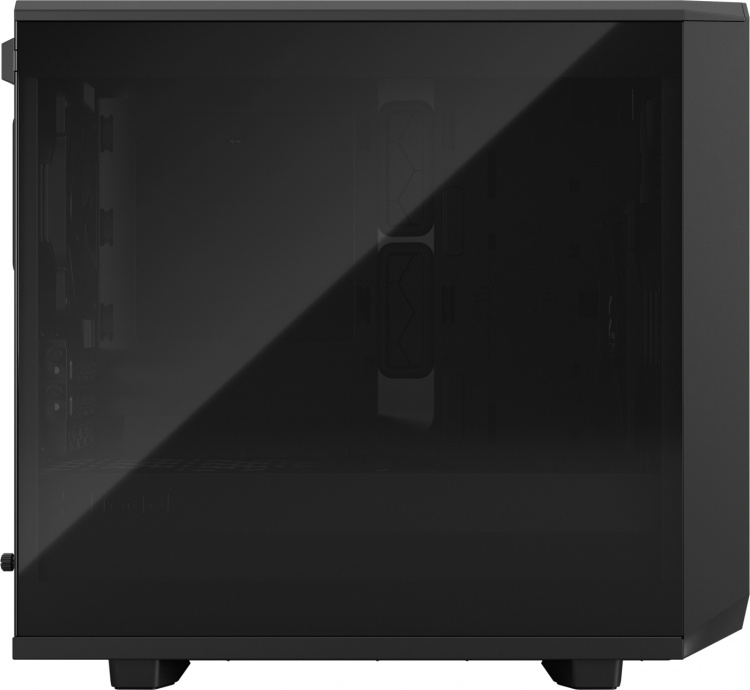

- Side panel made of tempered glass
- Easy-to-open panels
