The patch cable is suitable for private and industrial applications, including fibre to the home (FTTH), and is compatible with the FTTH options of a wide range of telecom providers. Thanks to an optimised bend radius of the fibre optic cable, space-saving installation is possible without increasing attenuation and risking interference.

optical fibre (FOC), LC-APC (8°) male > LC-APC (8°) male, halogen-free cable sheath (LSZH) Cable length 1 m

Förpackning: Bulk

mono-mode fibre optic cable designed for connection types such as FTTH, FTTB, FTTx, for use at home, in the office, in data centres etc.
the patch cord forms the connection between the house transfer point and the Optical Network Terminal (ONT) indoors
optical fibre cable for up to 100 Gbit/s that is bend-optimised and space-saving with a minimum bending radius of 30 mm (static)
LSZH-compliant: cable sheath is halogen-free and flame-retardant according to IEC 60754 2, IEC 60332 1 and IEC 61034
strain relief reinforced with aramid yarn provides extra stability

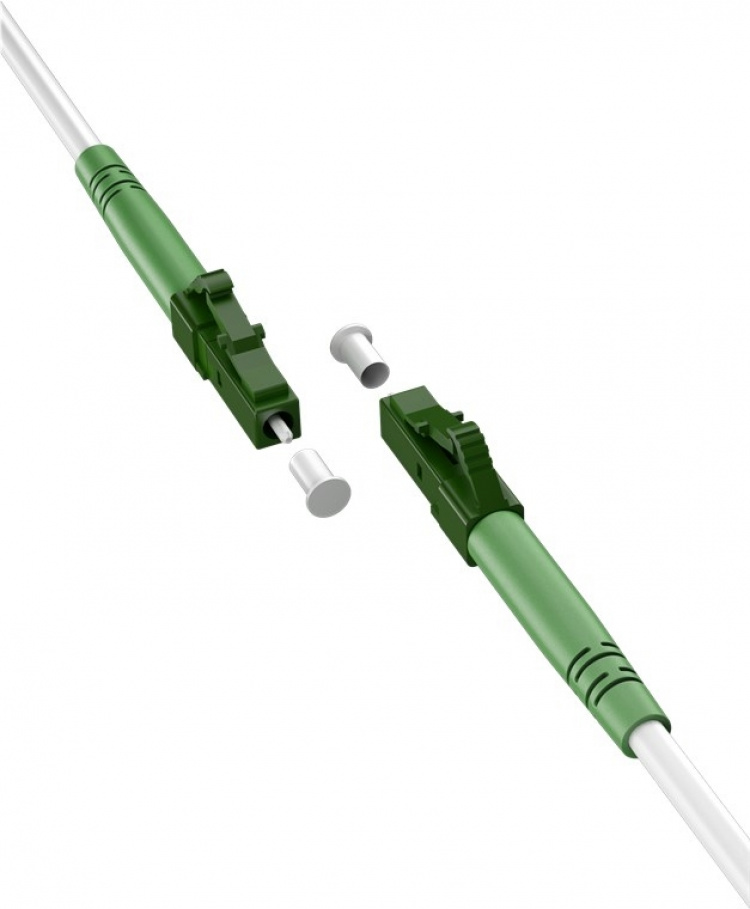

equipped with dust protection caps, connector: Simplex, fibre type: OS2, SM singlemode 9/125µm according to ITU-T G.657.A2
individual test protocol with measurement of return loss and insertion loss

Connection 2, type: LC-APC (8°) male
Cable fiber type: Glass Fibre G.657.A2
Material cable sheath: LSZH
LSZH compliant: yes
Cable type: simplex cable
Connection, type: LC-APC (8°) male
Kink protection: yes
Color: white
Color version: white
Consumption Unit: 1 pc. in polybag
Packaging type: Bulk
Cable length: 1 m
Specification: Singlemode (OS2) White
Optical fiber core diameter: 9 µ
Optical fiber sheath diameter: 125 µ

4040849595844EAN:

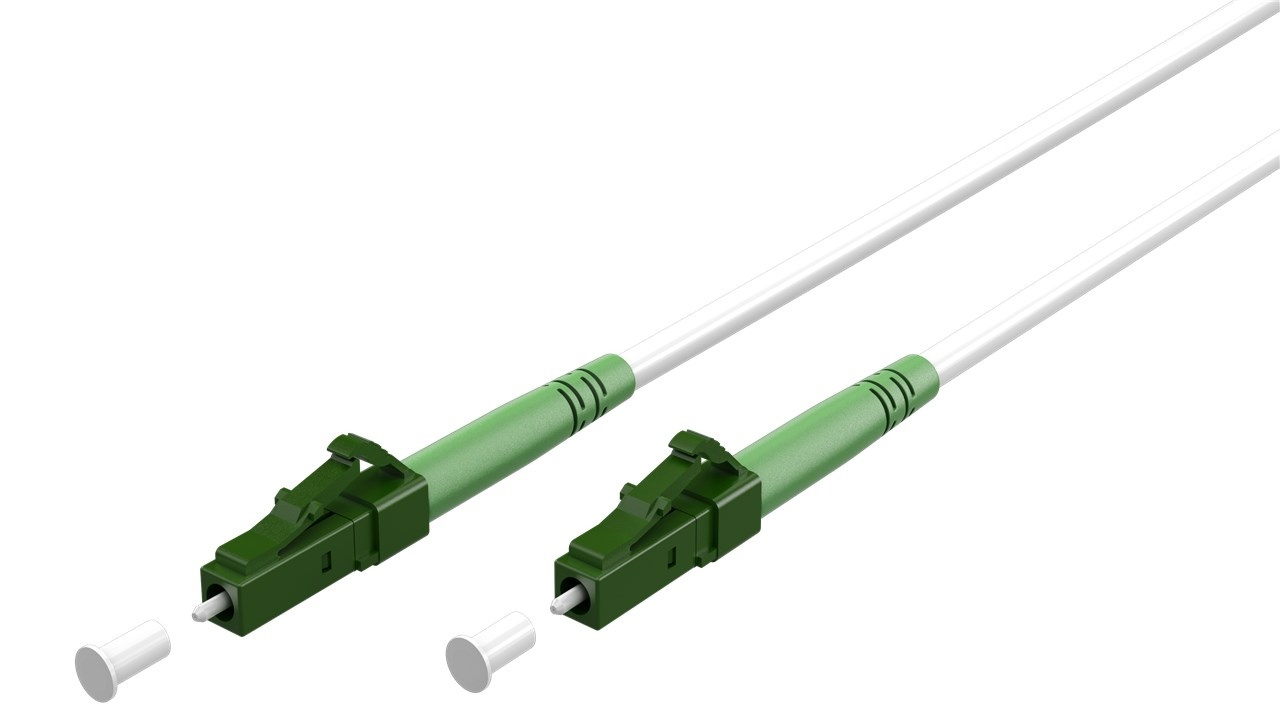

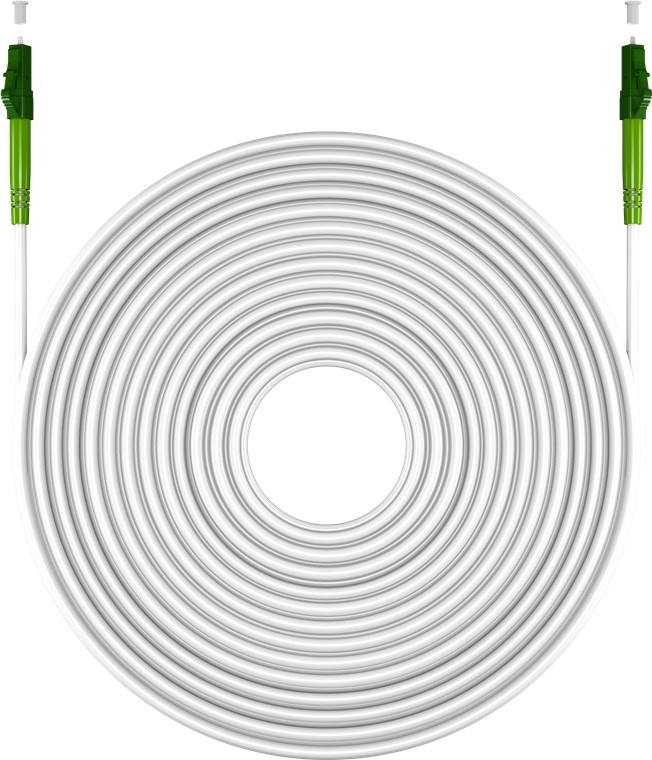

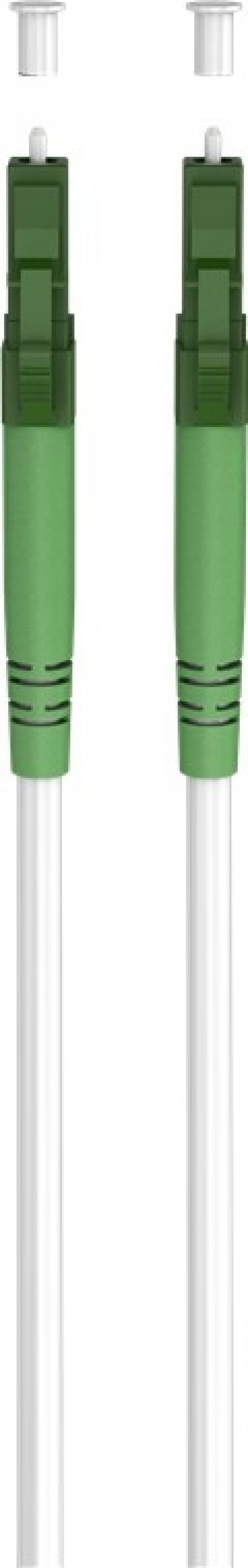

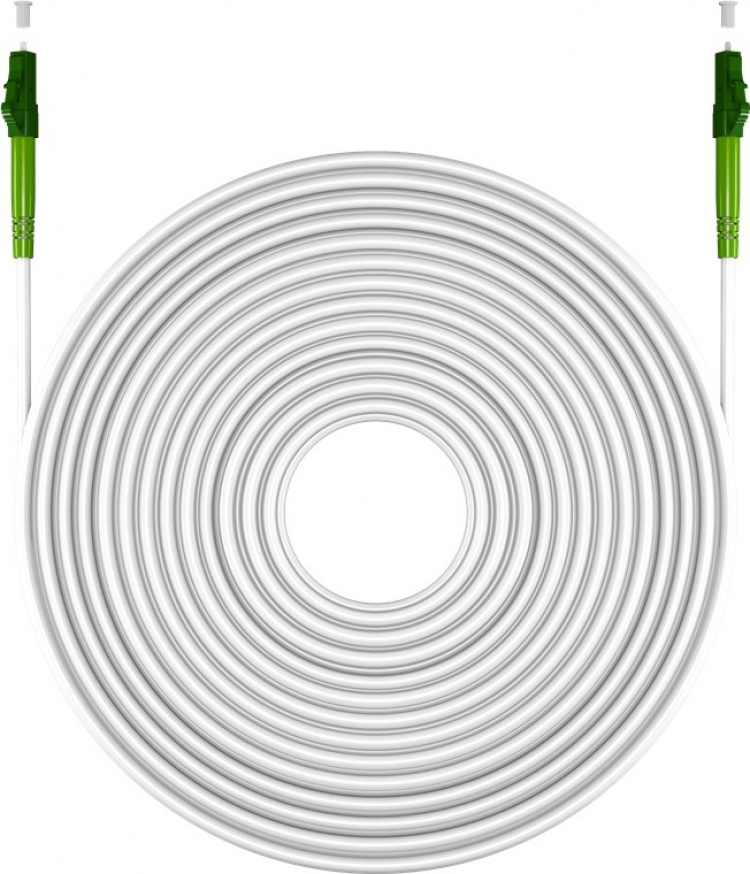

Goobay Fibre-optic Cable (FTTH), Singlemode (OS2) White,(Simplex) optical fibre (FOC), LC-APC (8°) male > LC-APC (8°) male, halogen-free cable sheath (LSZH)
