Goobay GHMT-certified CAT 8.1 S/FTP Patch Cord, AWG 26, grey copper conductor, LSZH halogen-free cable sheat, 0.5 m

Article nr: C43053
€9.99

Add to cart
Delivery time:  4-7 working days
  • Qliro Checkout
  • 50.000+ products
  • Great service
Information

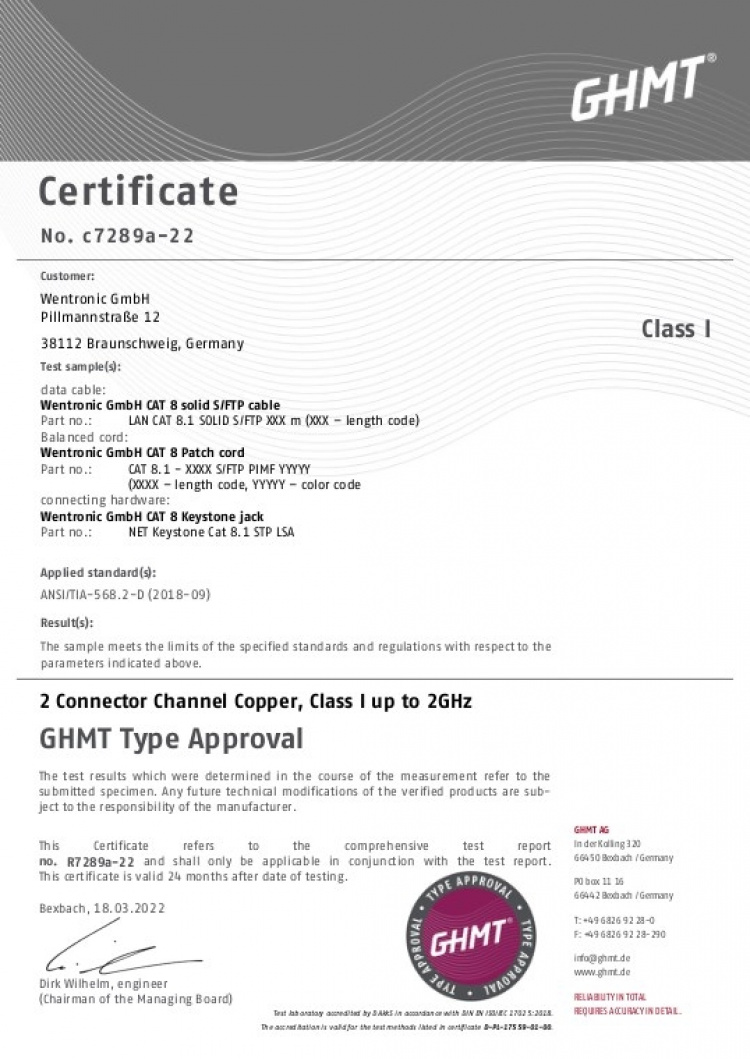

Reliable performance of the patch cable in CAT 8.1 channels is best ensured when combined with the GHMT-certified components listed below.Cable transmission characteristics were tested in a 2-connector channel over a transmission distance of 24 m for compliance with the specifications for Class I up to 2 GHz according to ANSI/TIA-568.2-D (2018-09): 2 Connector Channel Copper, Class I up to 2 GHzGHMT Type Approval Balanced cord: Wentronic GmbH CAT 8 patch cordPart no.: CAT 8.1 - 0.5 m S/FTP PiMF greyCertified patch cables: 61091, 61092, 61093, 61094, 61095, 61102, 61103, 61104, 61105, 61106, 61113, 61114, 61115, 61116, 61117Certified installation cables: 61126, 61127, 61128Certified Keystone coupler: 61133

copper conductor, LSZH halogen-free cable sheat Cable length 0.5 m

Förpackning: Cable Tag

  • The 0.5 m LAN cable supports 25GBase-T and 40GBase-T Ethernet networks (40-gigabit capable) and is backwards compatible with 10BASE-T, 100BASE-TX and 1000BASE-T.
  • With a transmission bandwidth of up to 2,000 MHz, the Ethernet cable has 4 times the bandwidth of a CAT 6A cable.
  • GHMT-certified for a transmission distance of 1x 24 m installation cable plus 2x 3 m patch cord in a 2-connector channel (8.1 Standard Class I with an operating frequency of up to 2 GHz)
  • S/FTP overall shield: aluminium foil shield for individual wire pairs (PiMF) and aluminium braid shield for the cable sheath
  • Assembled on both ends with RJ45 connectors (8P8C) with 50 μm gold-plated contact surfaces and latch protection.
  • CAT 8 LAN cable is suitable for Power over Ethernet (PoE, PoE+, UPoE, 4PPoE) and HDBaseT.
  • Low-smoke and halogen-free LSZH cable sheath
AWG: 26/7 (stranded)
Specification: CAT 8.1
Cable sheath diameter (approx.): 6.2 mm
Shielding class: S/FTP (PiMF)
Number of shieldings: 2 x
Contacting: EIA/TIA-568 B
max. bandwidth: 2000 MHz
Kink protection: both sides
Cable type: Cat 8.1 raw cable
Material cable sheath: LSZH
Inner conductor material: CU (copper)
LSZH compliant: yes
Type 1, shielding: foil (alu) PiMF
Type 2, shielding: braid (alu) overall shield
Connection, housing material: PVC
4040849611148EAN:
