The Keystone system knows no limits when it comes to installation. Take advantage of the modular connection system for standardised connectors and rectangular module receptacles (ports) in 14.9 × 17.0 mm pitch. The Snap-in system enables a wide variety of connection techniques, e.g. with coaxial sockets for IEC or F connectors, RJ45 jack sockets (CAT 5, CAT 6, CAT 6A), loudspeaker connectors (RCA sockets, screw and clamp connectors) as well as USB, fibre-optic and HDMI™ jack sockets. The Keystone modules can be universally applied and interchanged.

14.7 mm wide, 2x RJ45 female (8P8C)

Förpackning: Bulk

RJ45 coupling for extending and connecting 2x network cables with RJ45 plugs
RJ45 jack socket for easy snap-in mounting in Keystone patch panels with 24 ports, surface-mount box and Ethernet wall sockets
Ethernet coupler with robust metal housing and STP shield for a perfect transmission of electrical signals
Commonly used in network installations and for the assembly of permanently installed network cables
RJ45 jack sockets are suitable for PoE+ according to IEEE 802.3at
CAT 6A socket with high-quality contacts and 1:1 pin assignment

Specification: CAT 6A
Shielding class: STP
Markings: WEEE, CE
Width: 14.7 mm
max. bandwidth: 500 MHz
construction form: Keystone grid (14,9 x 17,0 mm)
Connection, type: 2x RJ45 female (8P8C)
Consumption Unit: 1 pc. in polybag

4040849908668EAN:

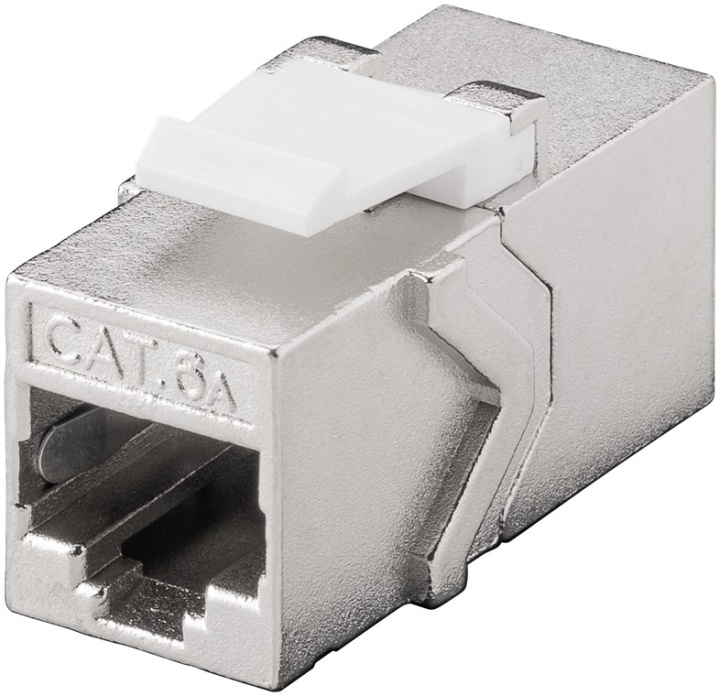

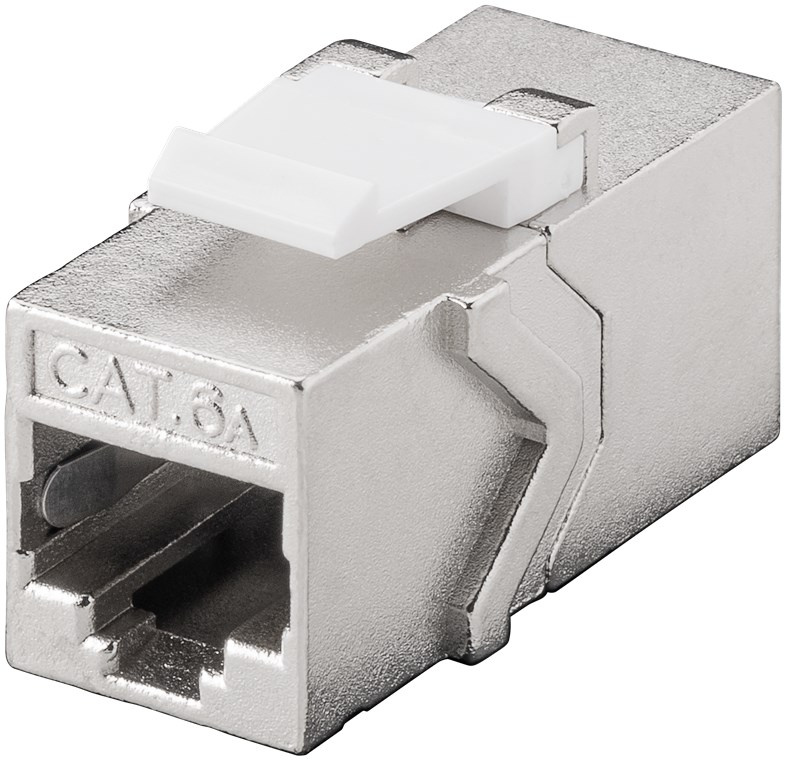

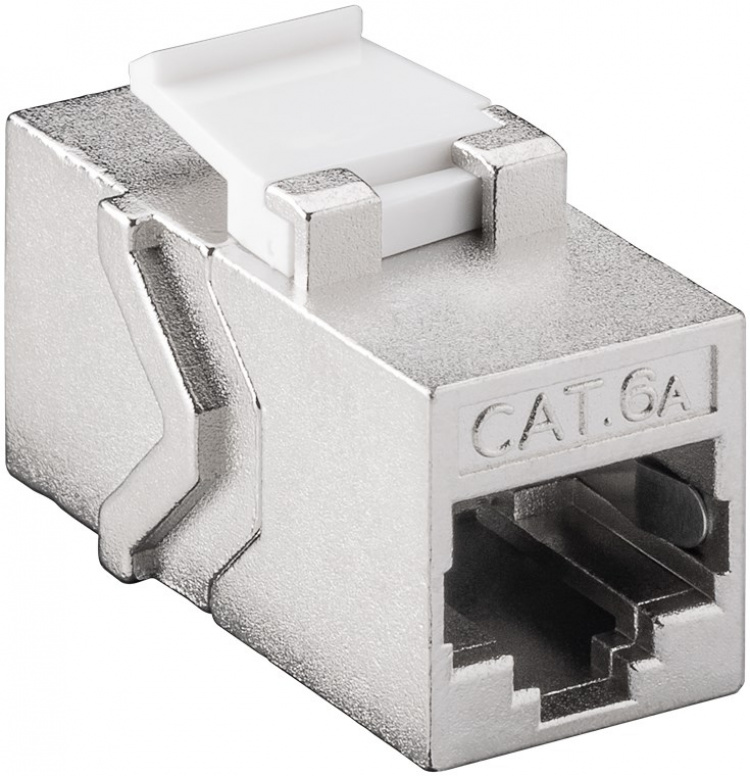

Goobay Keystone Module RJ45 Coupler CAT 6A, STP 14.7 mm wide, 2x RJ45 female (8P8C)
