The Keystone system knows no limits when it comes to installation. Take advantage of the modular connection system for standardised connectors and rectangular module receptacles (ports) in 14.9 × 17.0 mm pitch. The Snap-in system enables a wide variety of connection techniques, e.g. with coaxial sockets for IEC or F connectors, RJ45 jack sockets (CAT 5, CAT 6, CAT 6A), loudspeaker connectors (RCA sockets, screw and clamp connectors) as well as USB, fibre-optic and HDMI™ jack sockets. The Keystone modules can be universally applied and interchanged.

14.7 mm wide, 180° cable outlet, crocodile type, for IDC connection (toolless)

Förpackning: Bulk

RJ45 jack socket with robust zinc-alloy housing for a perfect transmission of electrical signals
LAN jack socket with STP shield for interference-free signal transmission
Commonly used in network installations and for the assembly of permanently installed network cables
RJ45 jack socket for installation in Keystone patch panels, Ethernet wall sockets and housings
Suitable for 10 Gigabit Ethernet applications and Power over Ethernet (PoE+) according to IEEE 802.3at
RJ45 socket for termination with CAT 6A cables

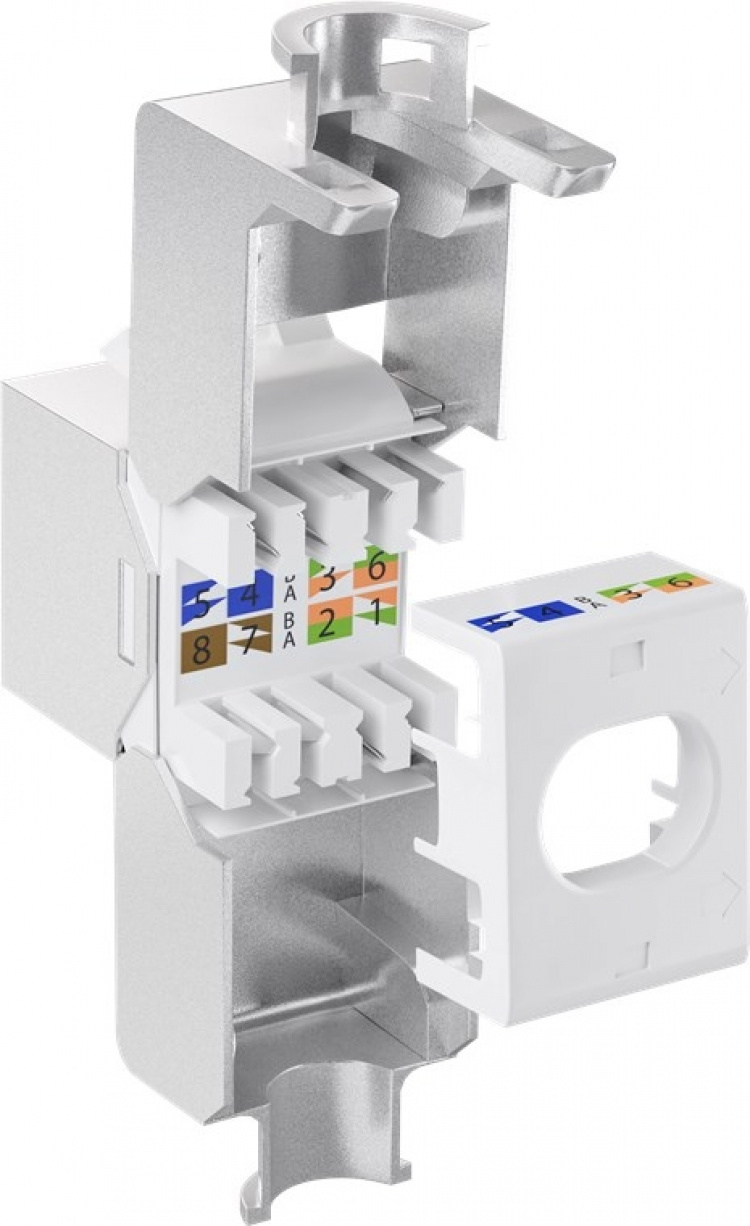

RJ45 connections are TIA 568A/B colour-coded

Specification: CAT 6A
Shielding class: STP

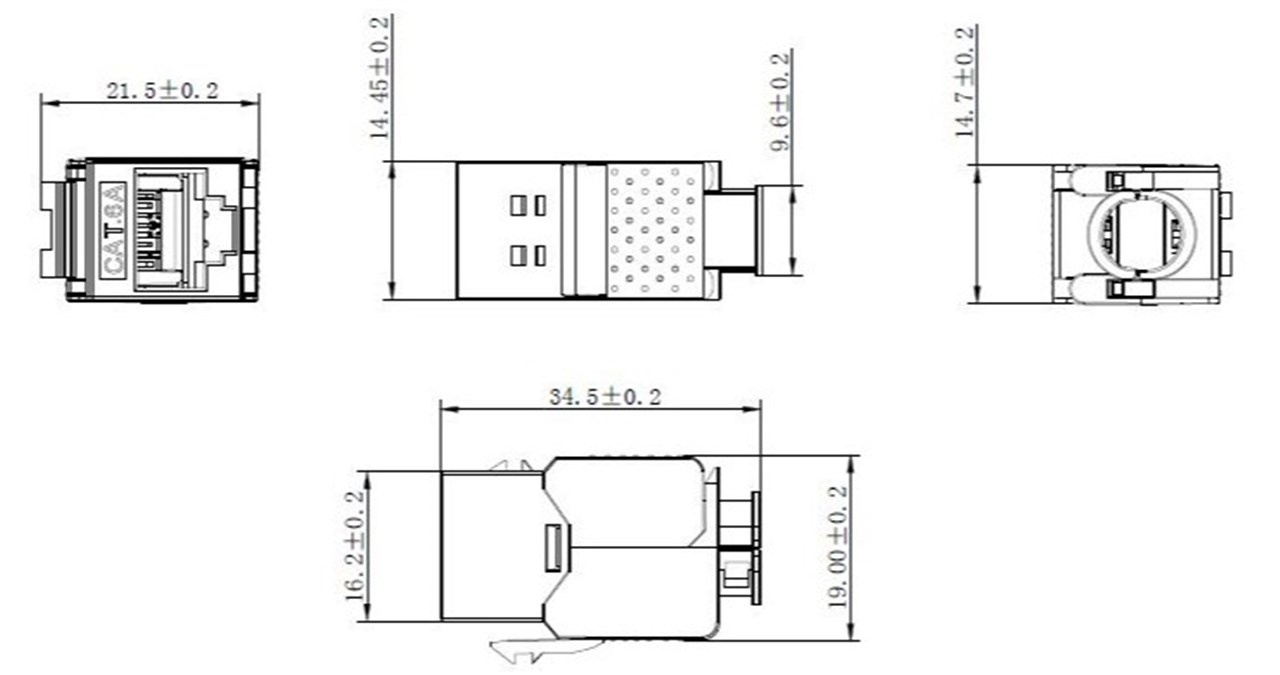

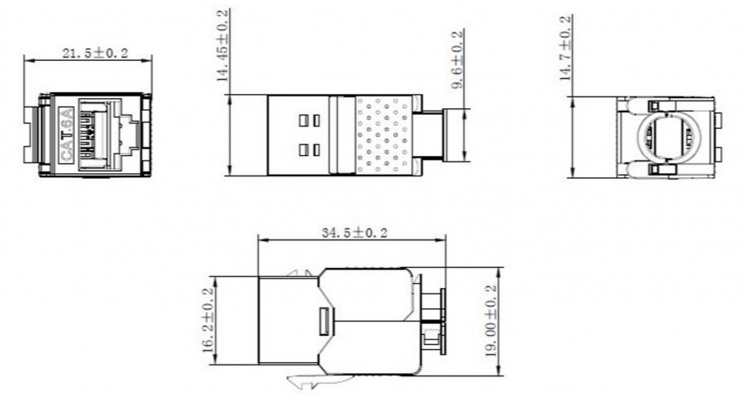

Height: 21.5 mm
Length: 34.5 mm
Width: 14.7 mm
max. bandwidth: 500 MHz
construction form: 180° cable outlet, crocodile type
Connection, type: RJ45 female (8P8C)
Connection 2, type: for IDC connection (toolless)
Consumption Unit: 1 pc. in polybag

4040849794483EAN:

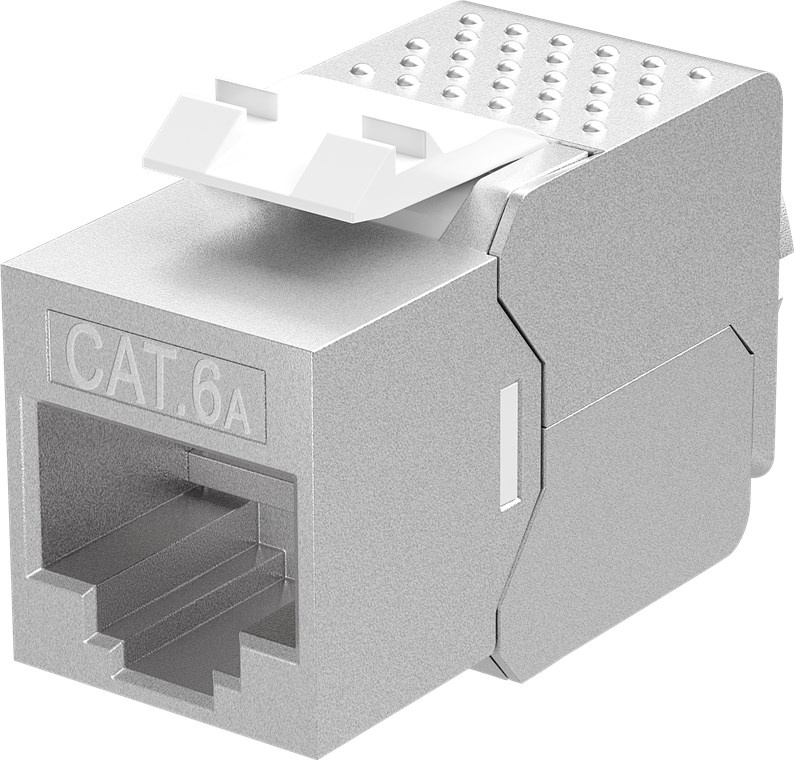

Goobay Keystone Module RJ45 CAT 6A, STP, Slim-Line 14.7 mm wide, crocodile type, for IDC connection (toolless)
