The Keystone system knows no limits when it comes to installation. Take advantage of the modular connection system for standardised connectors and rectangular module receptacles (ports) in 14.9 × 17.0 mm pitch. The Snap-in system enables a wide variety of connection techniques, e.g. with coaxial sockets for IEC or F connectors, RJ45 jack sockets (CAT 5, CAT 6, CAT 6A), loudspeaker connectors (RCA sockets, screw and clamp connectors) as well as USB, fibre-optic and HDMI™ jack sockets. The Keystone modules can be universally applied and interchanged.

17.0 mm wide, crocodile type, for tool-free IDC mounting, snap-in system

Förpackning: Bulk

RJ45 jack socket with robust zinc-alloy housing for a perfect transmission of electrical signals
CAT 6 jack socket with strain relief by cable tie
Suitable for Power over Ethernet (PoE+) according to IEEE 802.3at
RJ45 jack socket for installation in Keystone patch panels, Ethernet wall sockets and housings
Commonly used in network installations and for the assembly of permanently installed network cables
The Ethernet connector is not suitable for stranded wire
RJ45 connections are TIA 568B colour-coded

Specification: CAT 6
Shielding class: STP
Width: 17 mm
max. bandwidth: 250 MHz
construction form: 180° cable outlet, crocodile type
Connection, type: RJ45 female (8P8C)
Connection 2, type: for IDC connection (toolless)
Consumption Unit: 1 pc. in polybag

4040849908637EAN:

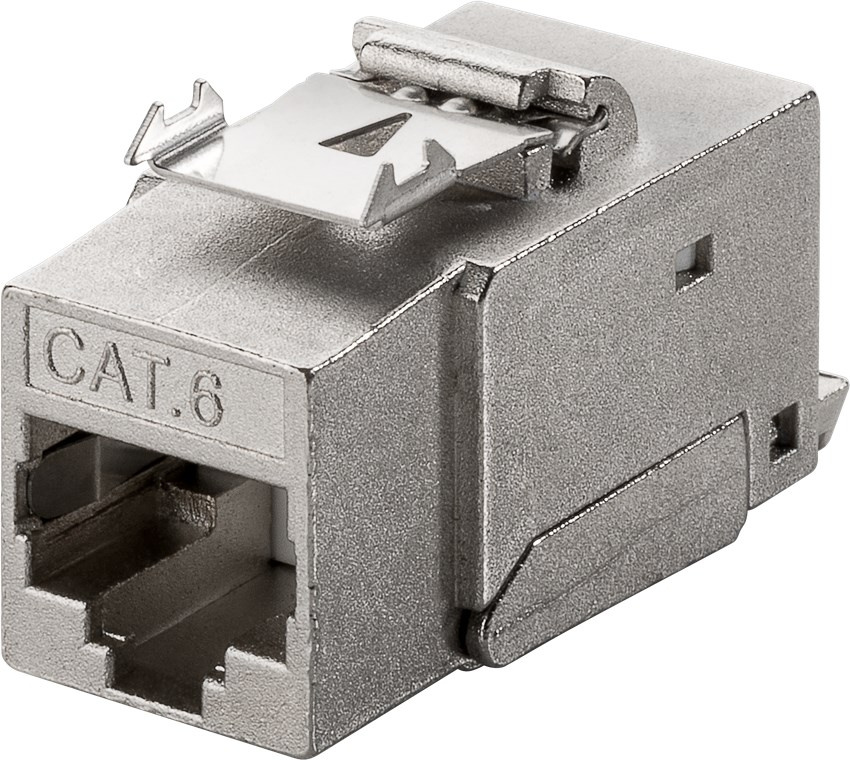

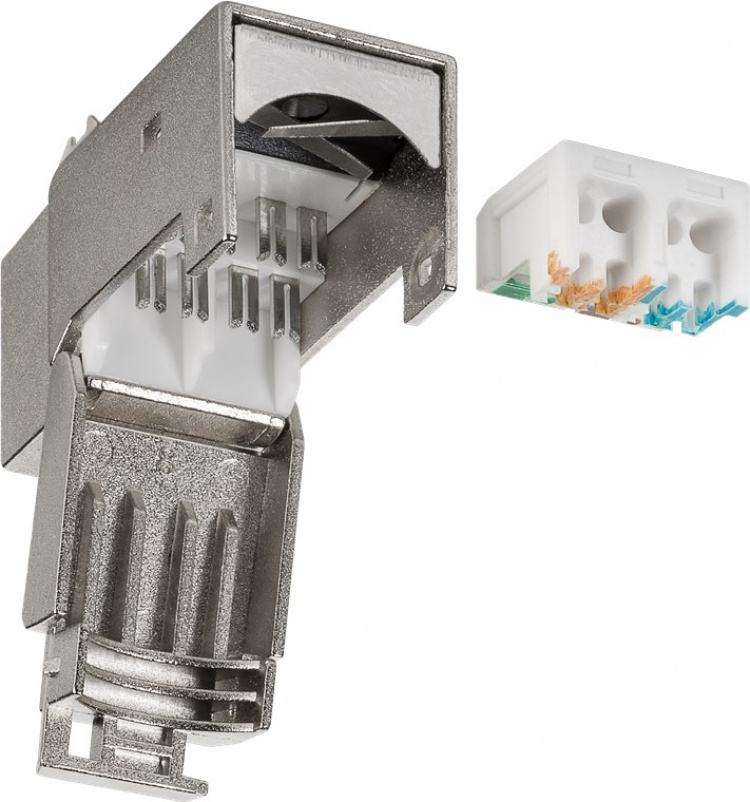

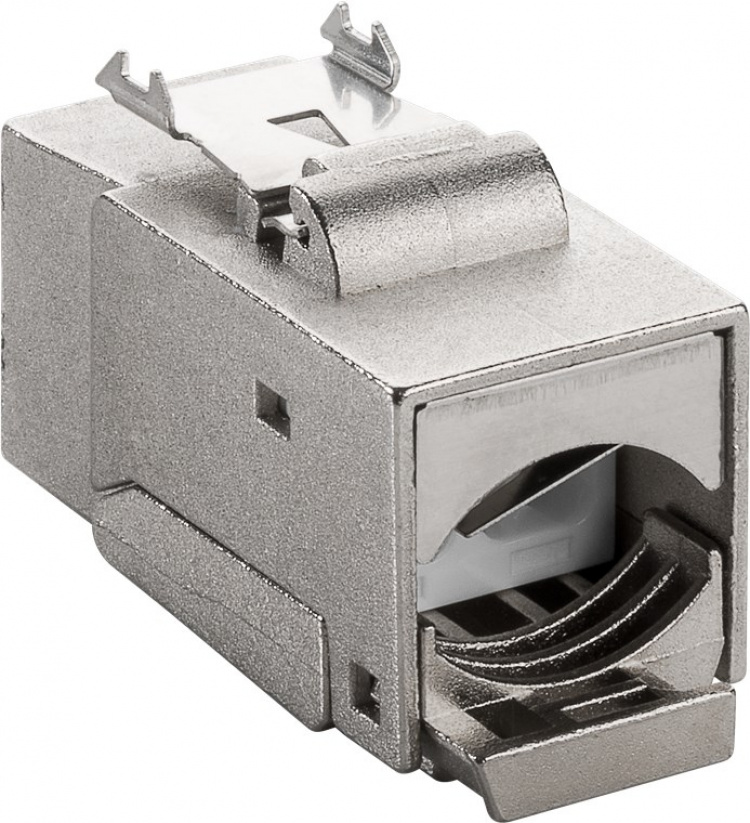

Goobay Keystone Module RJ45 CAT 6, STP, 250 MHz 17.0 mm wide, crocodile type, for tool-free IDC mounting, snap-in system
