The Keystone system knows no limits when it comes to installation. Take advantage of the modular connection system for standardised connectors and rectangular module receptacles (ports) in 14.9 × 17.0 mm pitch. The Snap-in system enables a wide variety of connection techniques, e.g. with coaxial sockets for IEC or F connectors, RJ45 jack sockets (CAT 5, CAT 6, CAT 6A), loudspeaker connectors (RCA sockets, screw and clamp connectors) as well as USB, fibre-optic and HDMI™ jack sockets. The Keystone modules can be universally applied and interchanged.

suitable for 19.2 x 14.9 mm Keystone port

Förpackning: Bulk

The Keystone frame can be installed in housings and is suitable for easy snap-in mounting of individual Keystone modules.
Integrated labelling field for clear structuring of the connectors.
Keystone mount made of robust die-cast zinc
Comes with 2 pilot holes for fastening with screws at a distance of 28.9 mm
Scope of delivery includes 2x screws for fastening

Height: 9.1 mm
Length: 35.5 mm
Width: 19.8 mm
construction form: Keystone grid (14,9 x 17,0 mm)
Material: zinc die-cast

4040849798832EAN:

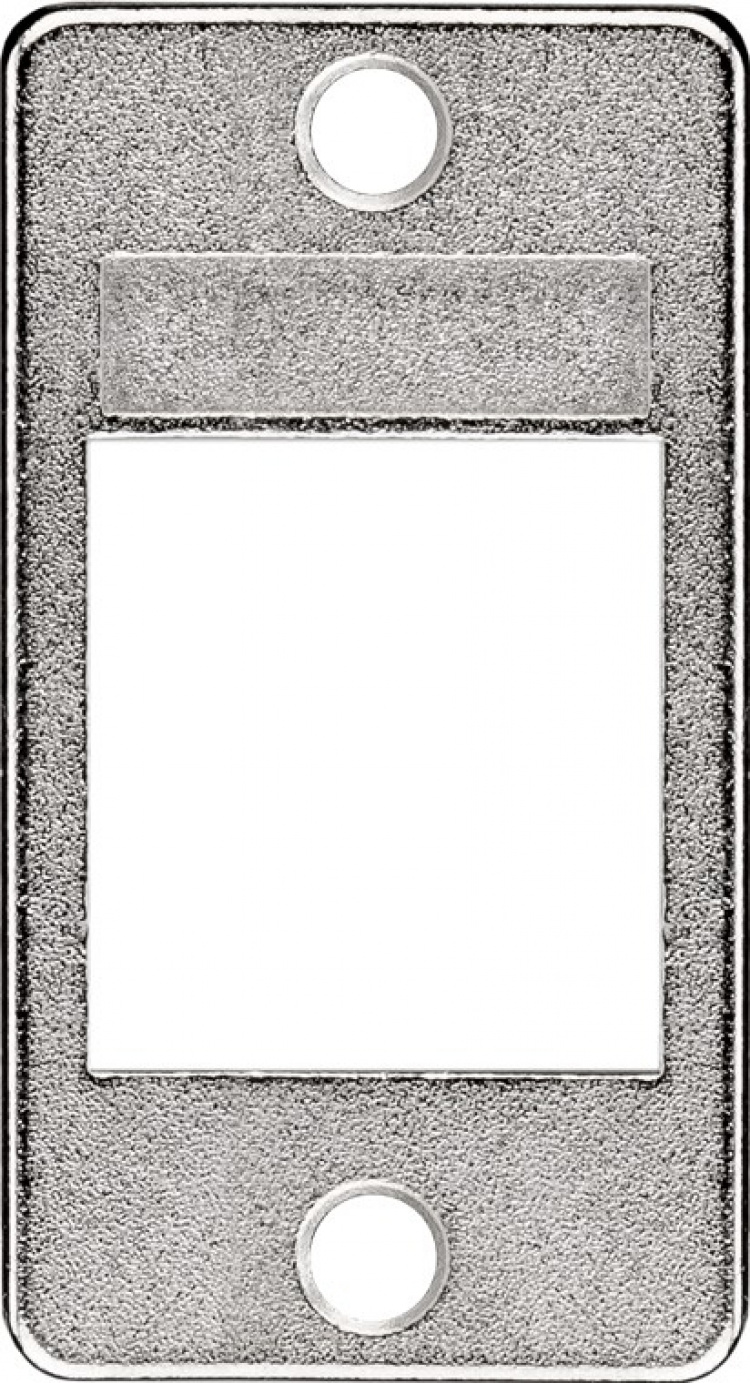

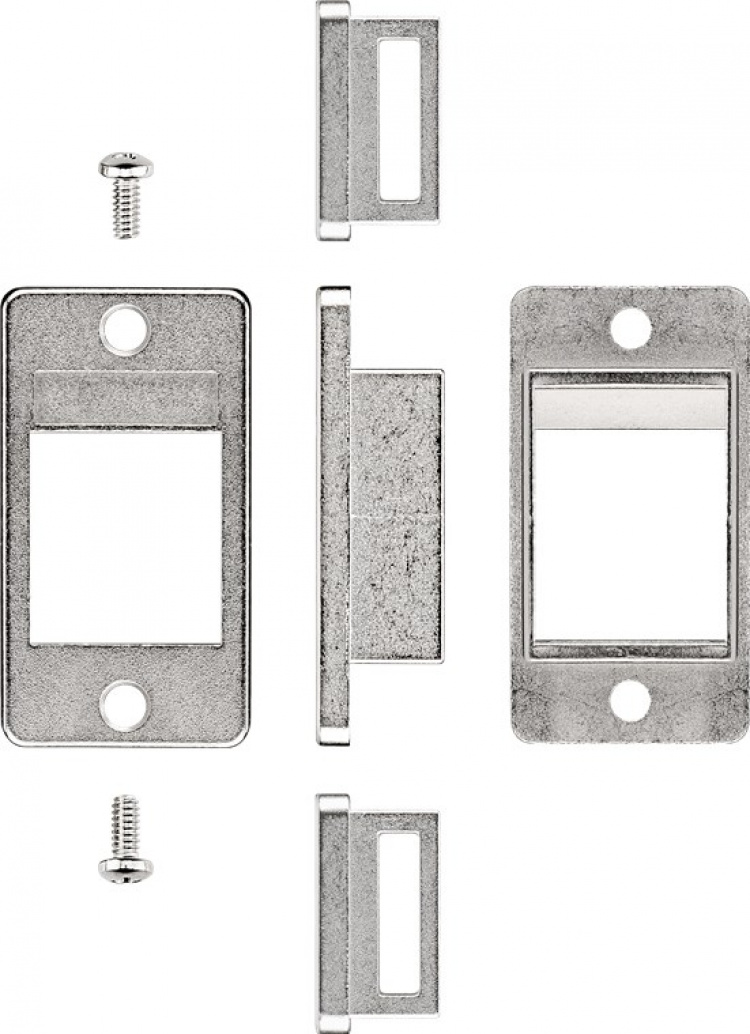

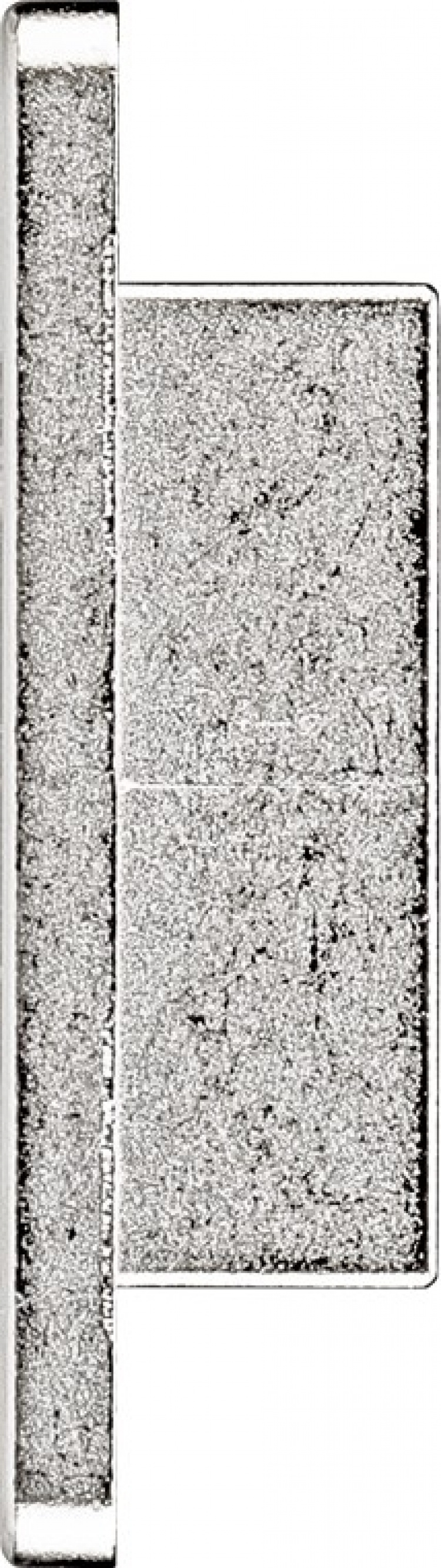

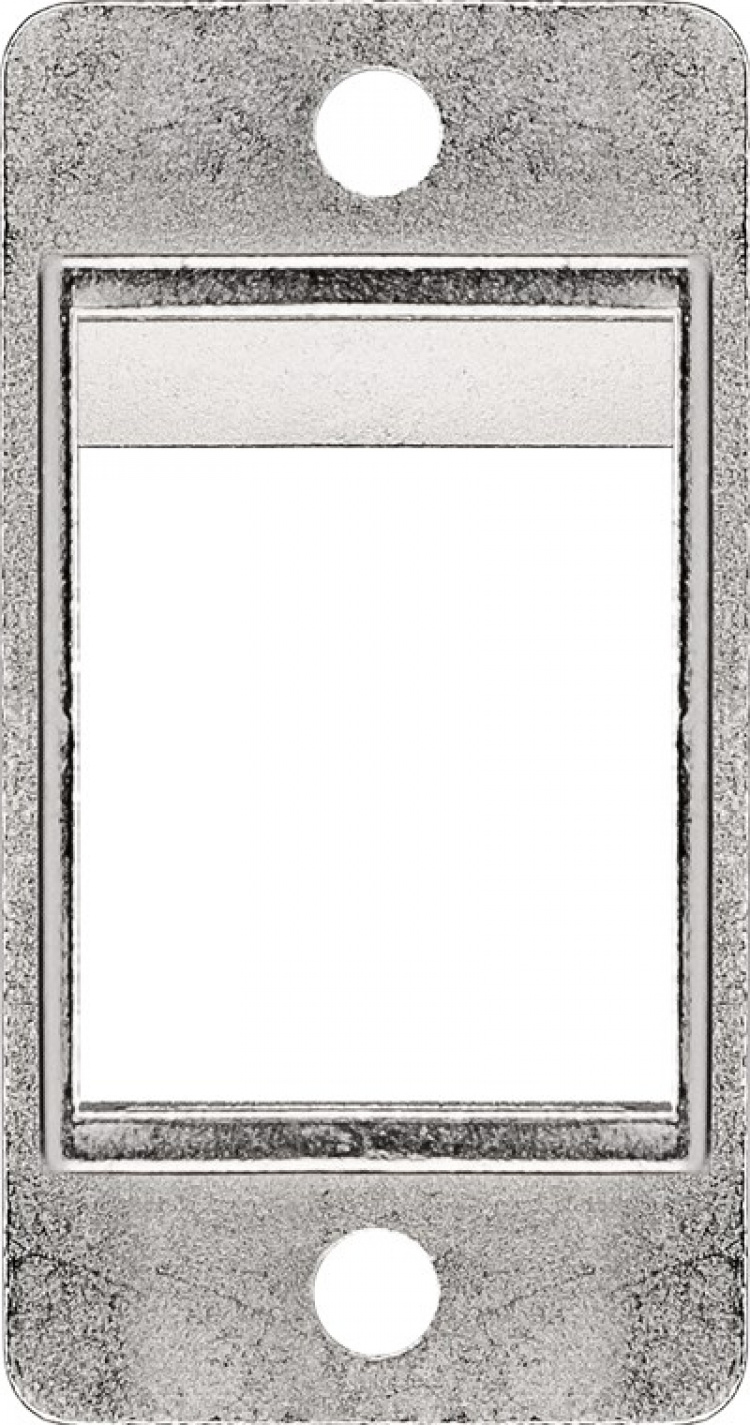

Goobay Keystone Holder/Bezel for Device Installation suitable for 19.2 x 14.9 mm Keystone port
