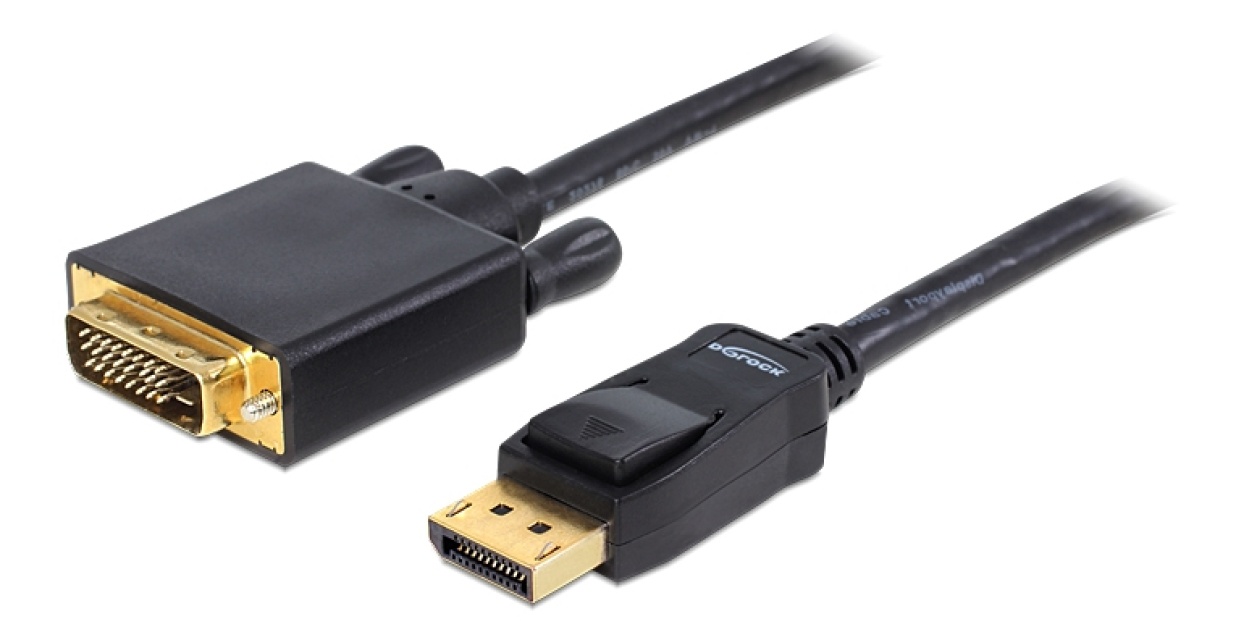

DeLOCK DisplayPort male - DVI-D Dual Link 24+1 male cable, 1920x1200, 28 AWG, DisplayPort 1.1, 2m, black
This cable by Delock enables the connection between devices, e.g. a monitor, with DVI connector to a Displayport interface.
Specification
• Connectors:
1 x Displayport 20 pin male >
1 x DVI-D (Dual Link) 24+2 male
• Chipset: NXP PTN3361
• DVI connector with screws
• Displayport 1.1 specification
• Passive cable (level shifter), suitable only for graphics cards with DP++ output
• Signal direction: Displayport input > DVI output
• Cable gauge: 28 AWG
• Cable diameter: ca. 6.5 mm
• Twisted-pair cabling
• Copper conductor
• Gold-plated connectors
• Triple shielded cable
• Data transfer rate up to 10.8 Gb/s
• Resolution up to 1920 x 1200 @ 60 Hz (depending on the system and the connected
hardware)
• Colour: black
• Length incl. connectors: ca. 2 m
System requirements
• A free Displayport DP++ female port
Package content
• Displayport to DVI cable
