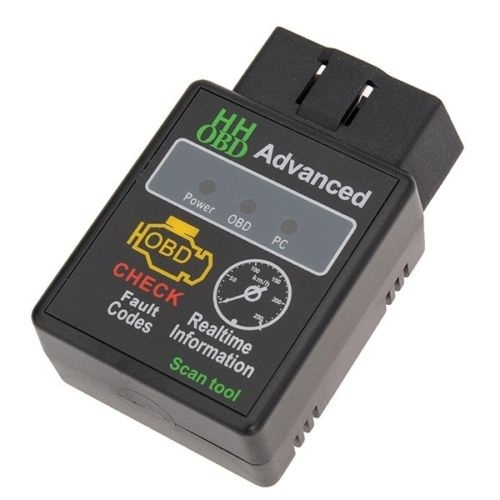

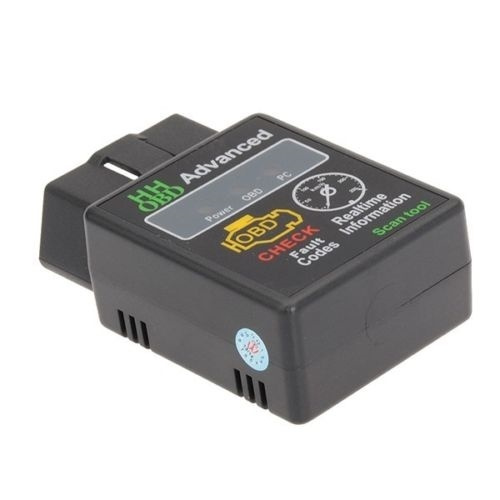

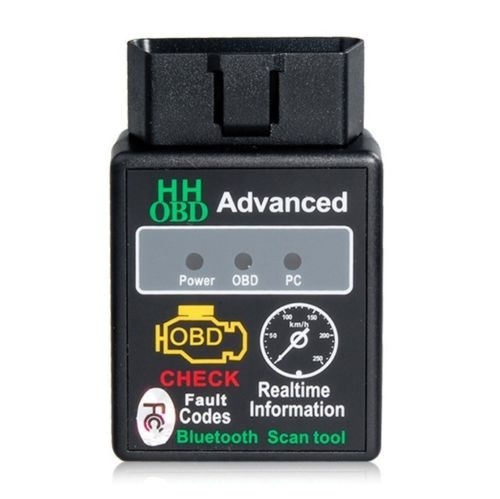

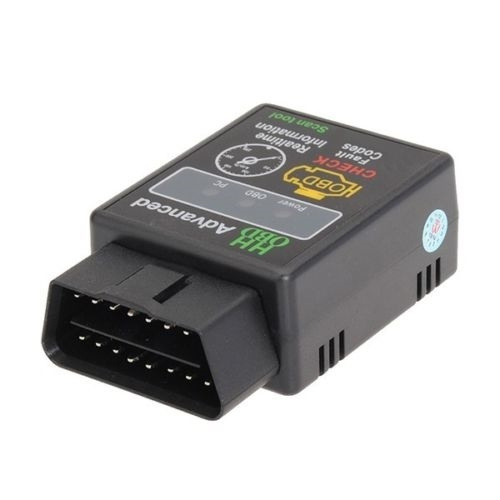

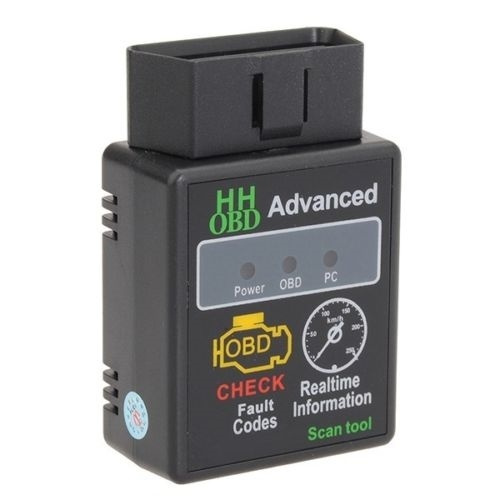

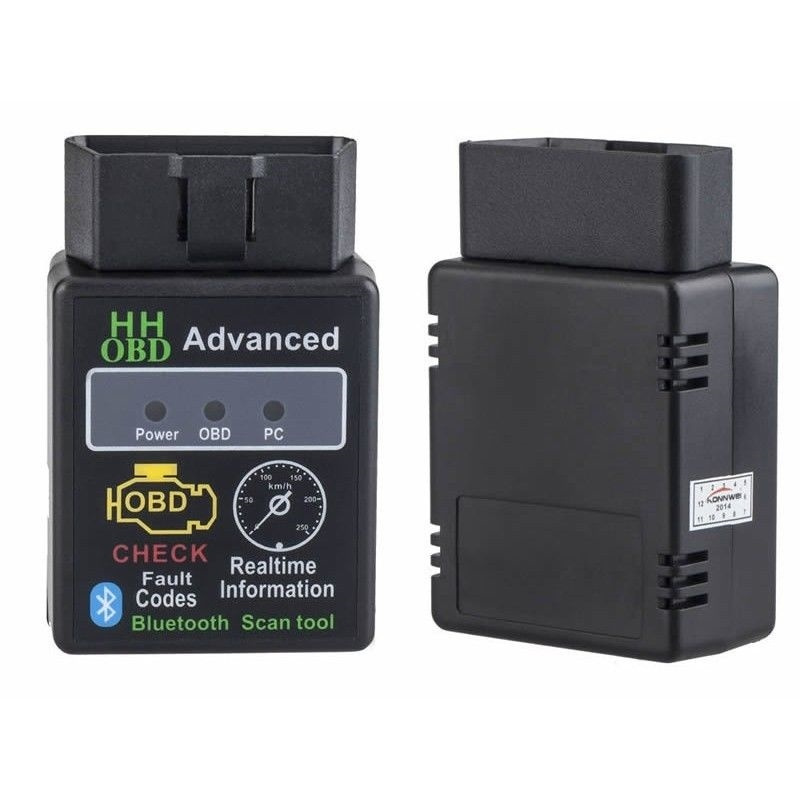

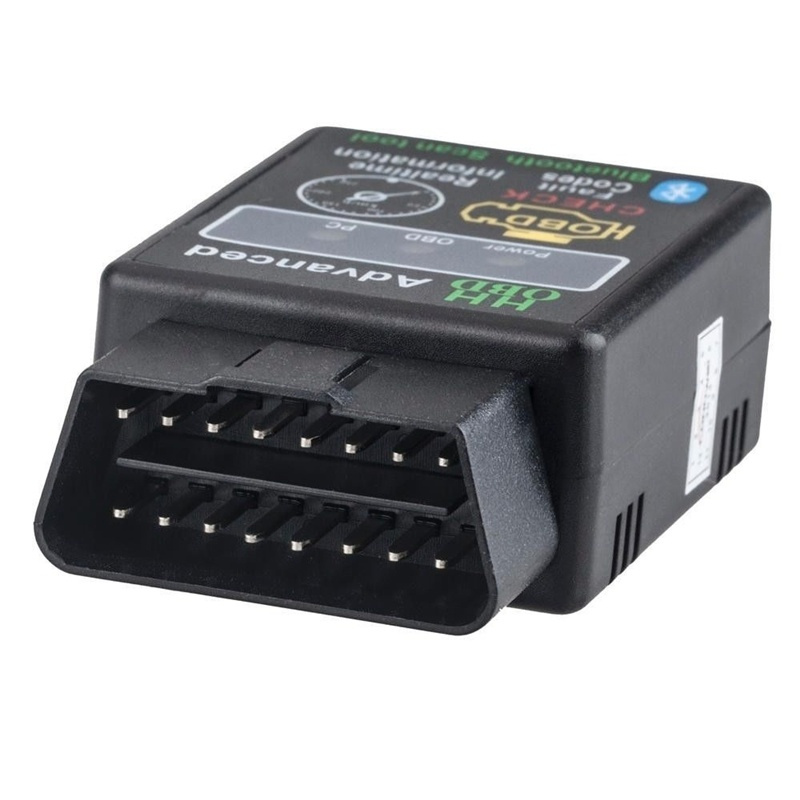

Fault code reader HH OBD Bluetooth for Android

Article nr: 38-6500
€9.99

Delivery time:  Out of stock
  • Qliro Checkout
  • 50.000+ products
  • Great service
Information
The HH OBD ELM327 Bluetooth OBDII scanner is an engine performance and diagnostics tool for both automotive enthusiasts and professionals. Paired with your Android smartphone or tablet, the ELM327 Bluetooth allows you to easily scan and clear engine codes, view and save real-time engine and performance data and much more.

Features:

  • Read and erase diagnostic trouble codes (DTCs) and turn off the check engine light
  • Connect to an Android Smartphone using one of the many free compatible apps or a Bluetooth® enabled computer using the supplied software
  • View real-time vehicle data, graphs and performance parameters while you're driving
  • Find and fix problems before they happen
  • Pays for itself with one use
  • Connects wireless via Bluetooth up to 3 meters (no annoying cables)
  • Compatible with most OBDII compliant vehicles (see compatible protocols below)



Bluetooth Pairing Password: 1234


Compatible Protocols:

  • ISO 9141-2 (5 baud init, 10.4 kbaud)
  • ISO 14230-4 KWP (5 baud init, 10.4 kbaud) - KWP2000
  • ISO 14230-4 KWP (fast init, 10.4 kbaud) - KWP2000
  • ISO 15765-4 CAN (11 bit ID, 500 kbaud) - CAN BUS
  • ISO 15765-4 CAN (29 bit ID, 500 kbaud) - CAN BUS
  • ISO 15765-4 CAN (11 bit ID, 250 kbaud) - CAN BUS
  • ISO 15765-4 CAN (29 bit ID, 250 kbaud) - CAN BUS

Vehicle Coverage:

Works on OBDII Vehicles (1996+ in USA) and EOBD vehicles (Petrol cars from 2001+ and diesel cars from 2003/2004 in Europe) that use the compatible communication protocols listed above.
For your vehicle to be OBDII compliant it must have a 16-pin DLC (Data Link Connector) under the dash and the Vehicle Emission Control Information Label must state that the vehicle is OBDII compliant.



NOTE: NOT compatible with the following Protocols:

  • SAE J1850 VPW - Used on older GM and Chrysler/Dodge vehicles before 2008
  • SAE J1850 PWM - Used on older Ford vehicles before 2008
  • SAE J1939 - Used on heavy duty commercial vehicles



Functions Available:

With the appropriate applications, perform the following operations:

  • Read diagnostic trouble codes, both generic and manufacturer-specific, and display code descriptions with over 3000 universal code definitions in the database
  • Clear diagnostic trouble codes and turn off check engine lights
  • Display and record real-time sensor data, including:
  • Engine RPM
  • Coolant Temperature
  • Calculated Load Value
  • Fuel System Status
  • MPH Speed
  • Short Term Fuel Trim
  • Long Term Fuel Trim
  • Intake Manifold Pressure
  • Timing Advance
  • Intake Air Temperature
  • Air Flow Rate
  • Absolute Throttle Position
  • Oxygen Sensor Voltages/Associated Short Term Fuel Trims
  • Fuel System Status
  • Fuel Pressure
  • + More



Recommended Free Android App: Torque

Torque is an OBDII performance and diagnostic tool for any device that runs the Android operating system. It will allow you to access the many sensors within your vehicles Engine Management System, as well as allow you to view and clear trouble codes.

OBS! All användning av bildiagnostikverktyg sker på egen risk, ingen support lämnas.

1 års garanti

6959149053160EAN:
