The mains adapter directly connects the LAPP Universal charging station for EVs to a safety socket - for easy charging at home or on the road. Simply connect the Type 2 coupling of the cable to the car and the safety plug to the mains socket. The on-board electronics automatically starts and finishes the charging process.The LAPP charging station is suitable for plug-in hybrid (PHEV) and battery electric vehicles (BEV).

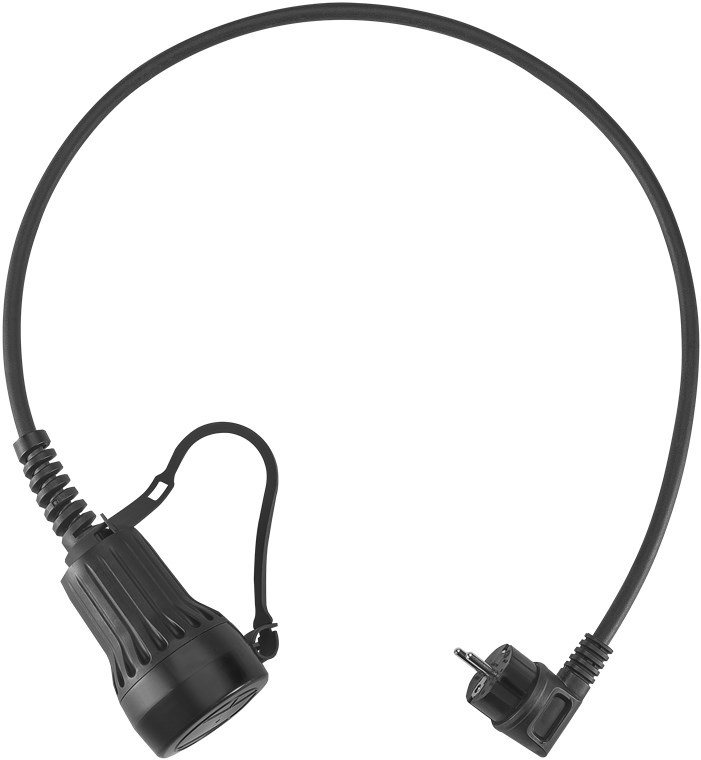

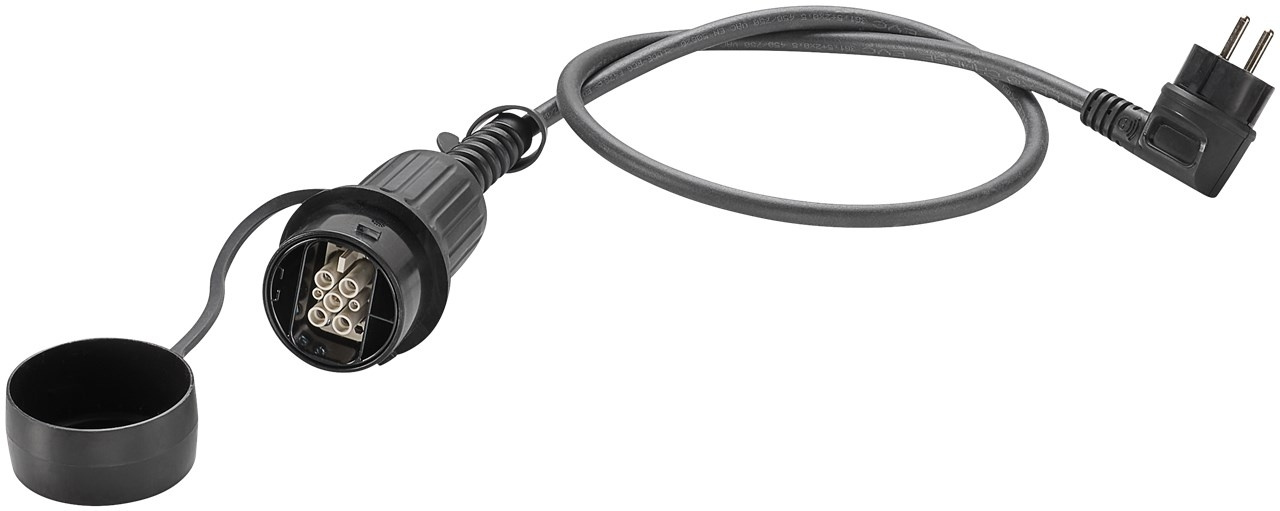

(5555923000) 10 A, adapter cable for the LAPP charging station Universal

Förpackning: Retail Box

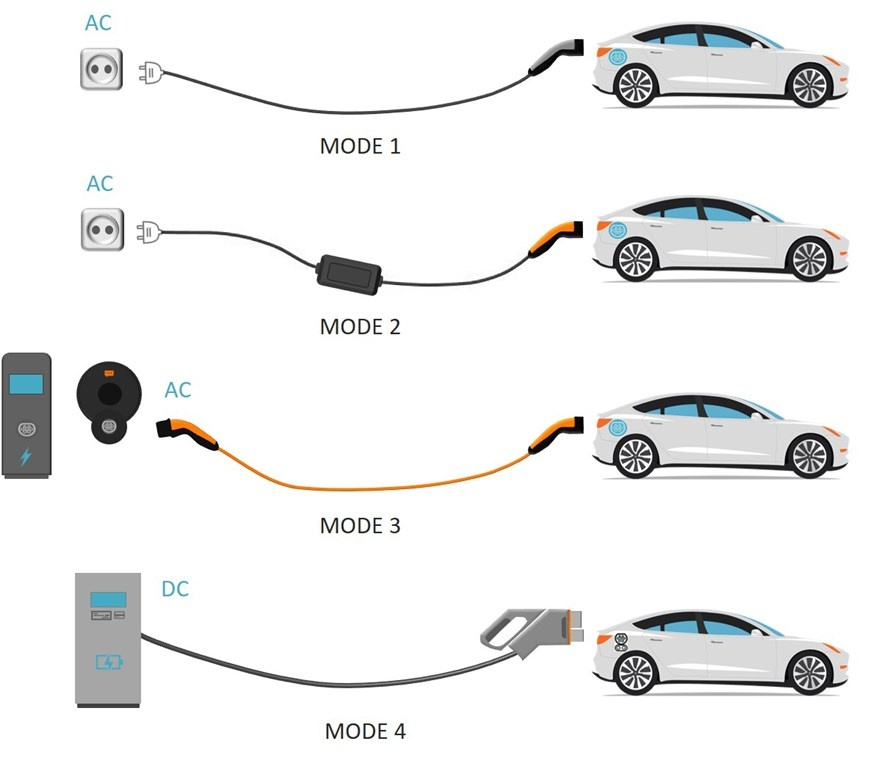

Mains adapter for use with the separately available Mode 2 charger "Charging Station Universal" for Type 2 electric cars
For easy charging with up to 2.3 kW at household sockets (type E/F, CEE 7/3) - ideal in the garage at home or as an emergency charging cable on the road
As an adapter for the charging station Universal, it provides highly flexible mobile charging, eliminating the need to purchase an additional Type 2 cable
Charging adapter for safe, stable charging at a nominal voltage of 230 V (AC), operating temperature -25 °C to 45 °C
Robust, vehicle-resistant cables and a socket with silver-plated contacts provide extra durability
The cover cap on the female plug protects against the ingress of dust, dirt and water during storage

Cable length: 0.96 m
Inner conductor cross-section: 2.5 mm²
max current capacity: 10 A
Number of phases: 1
Markings: WEEE, CE
Manufacturer designation: 5555923000
Model designation: 5555923000
Operating temperature up to: 45 °C
Operating temperature from: -25 °C
protection class: IP44
Loading capacity up to: 2.3 kW
Rated voltage: 230 V (AC)
Cable type: smooth cable
Connection, type: safety plug hybrid (type E/F, CEE 7/7)
Connection 2, type: LAPP Separation point

4056158850925EAN:

LAPP MOBILITY Safety Plug Charging Adapter Universal, up to 2.3 kW (5555923000) 10 A, adapter cable for the LAPP charging station Universal
