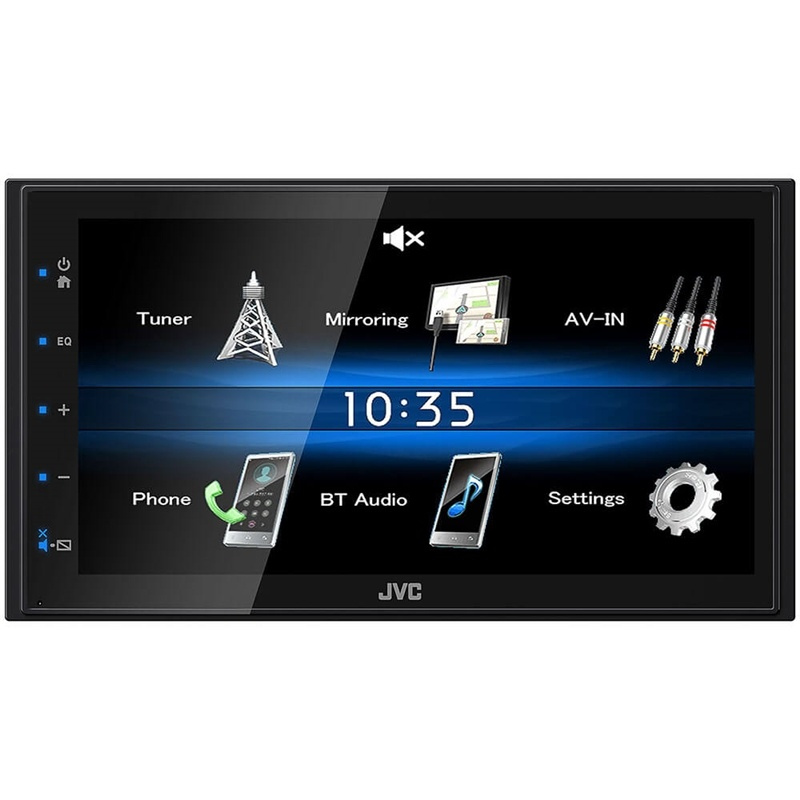

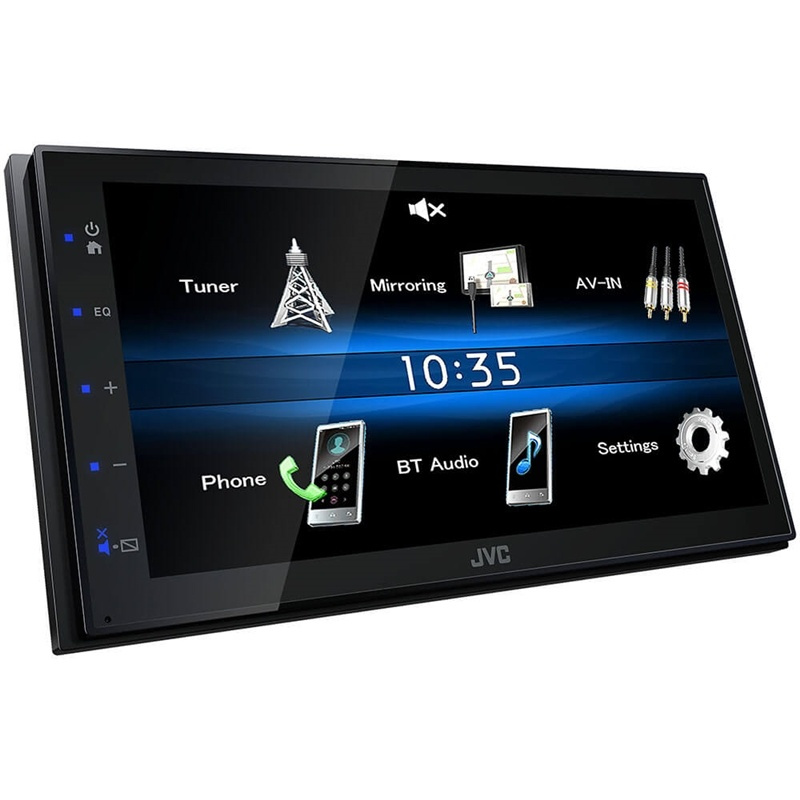

JVC , Mechless, Multimedia system KW-M25BT
- Mirroring for Android (via USB)
- Android Music Playback (via Bluetooth(R))
- iPod/iPhone Music Playback (via USB or Bluetooth(R))
- Bluetooth(R) Wireless Technology
- Bluetooth Hands Free Call (HFP)
- Bluetooth Audio Streaming & Control (A2DP, AVRCP)
- Bluetooth Voice Dialing
- Bluetooth Phone Book Access Profile (PBAP)
- 6.8" Clear Resistive with Printing
- Short Chassis
USB Mirroring for Android
Seamlessly display your Android phone on the JVC screen via USB. Touch control is supported from both screen and smartphone.
Technical Specifications
Monitor
Screen Size 6.8" Wide VGA
Touch Panel Capacitive with Printing
Key Illumination Color Blue
Multilingual Display Yes
Media Playback
MP3 Compatible with Tag USB
WMA Compatible with Tag USB
WAV Compatible with Tag USB
AAC Compatible with Tag USB
FLAC Compatible with Tag USB
H.264 Compatible USB
WMV Compatible USB
MPEG 1/2 Compatible USB
MPEG 4 Compatible USB
AVI/MKV Compatible USB
JPEG File Playback USB
PNG File Playback USB
Bluetooth Control
Built-In Bluetooth Yes (Version 4.2, Wired-Mic included)
Hands Free Call Yes (HFP1.6 Wideband Speech)
Audio Streaming & Control (A2DP, AVRCP) Yes
Voice Dialing (voice recognition compatible mobile phone required) Yes
Phone Book Access Profile (PBAP) Yes
Android Control
Android Music Playback Yes (via Bluetooth(R))
Mirroring for Android Yes (via USB)
iPod/iPhone Control
iPod/iPhone Music Playback Yes (via USB or Bluetooth(R))
USB
USB Port x1 (High Speed)
Position Rear
USB Power Supply Yes (1.0A)
Radio Tuner
Radio Data System Yes
Preset Stations 30 (6ch x 5band)
Automatic Presetting (Strong Station Sequential Memory) Yes
FM
Frequency Range 87.5-108.0MHz
AM
Frequency Range (MW)531-1,611kHz
Audio
Maximum Power Output (Front & Rear) 50Wx4
Full Bandwidth Power (Front & Rear) 21W x 4 (Full Bandwidth Power, at less than 1% THD)
EQ Yes (7-Band Graphic EQ)
Preset EQ Yes (5Preset + 1user)
High-Pass Filter/Low-Pass Filter -/Yes
Bass Boost Yes
Inputs and Outputs
AV Input RCA x 1
Video Out RCA
Pre-output Level/Impedance 2V / 10k ohms
Rear view camera Input Yes
Line Output Terminals 3 Pairs (Front (L/ R), Rear (L/ R), Sub.W (Mono) x1)
Subwoofer Output with Level/Frequency Control Yes
General
Shallow Chassis Yes
Wireless Remote Control Ready (RM-RK258 required)
Steering Remote Control Ready Yes
Installation Size 182 x 112 x 75 (mm)
Weight 1.1kg : inlcuding sleeve and escutcheon
