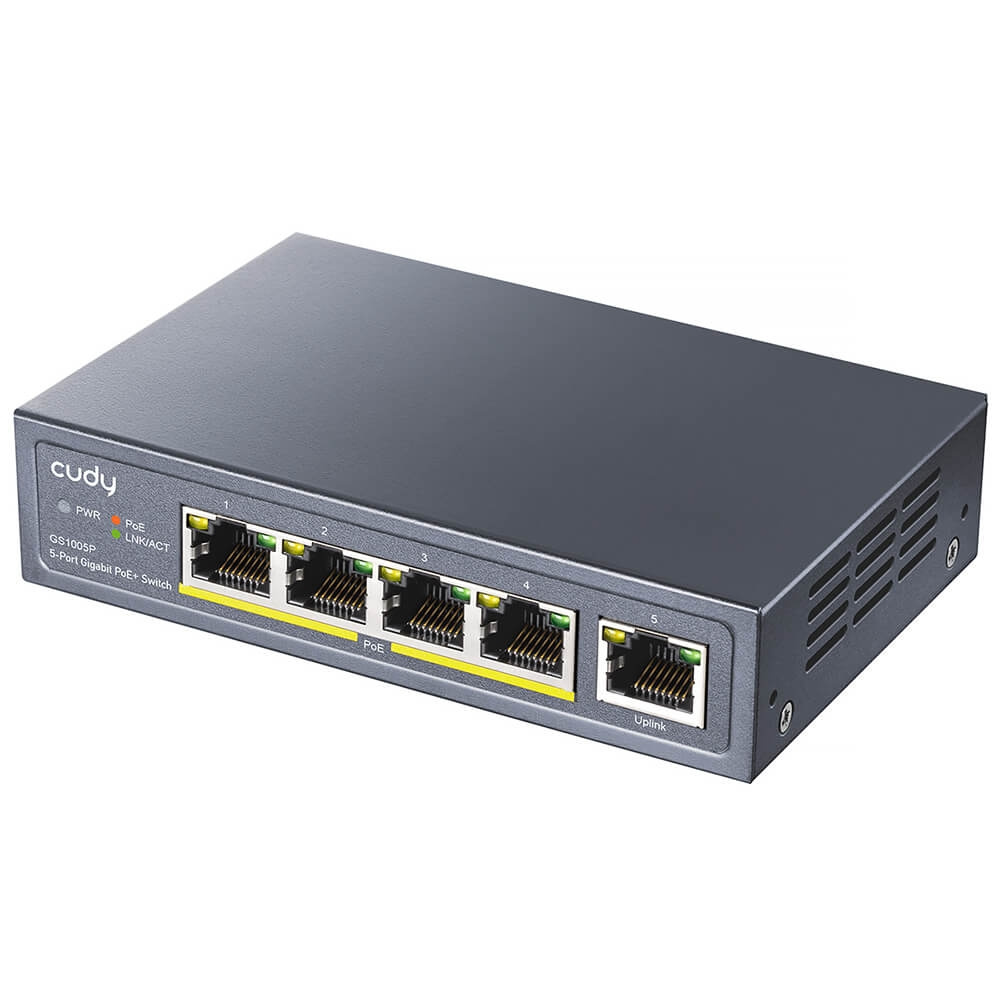

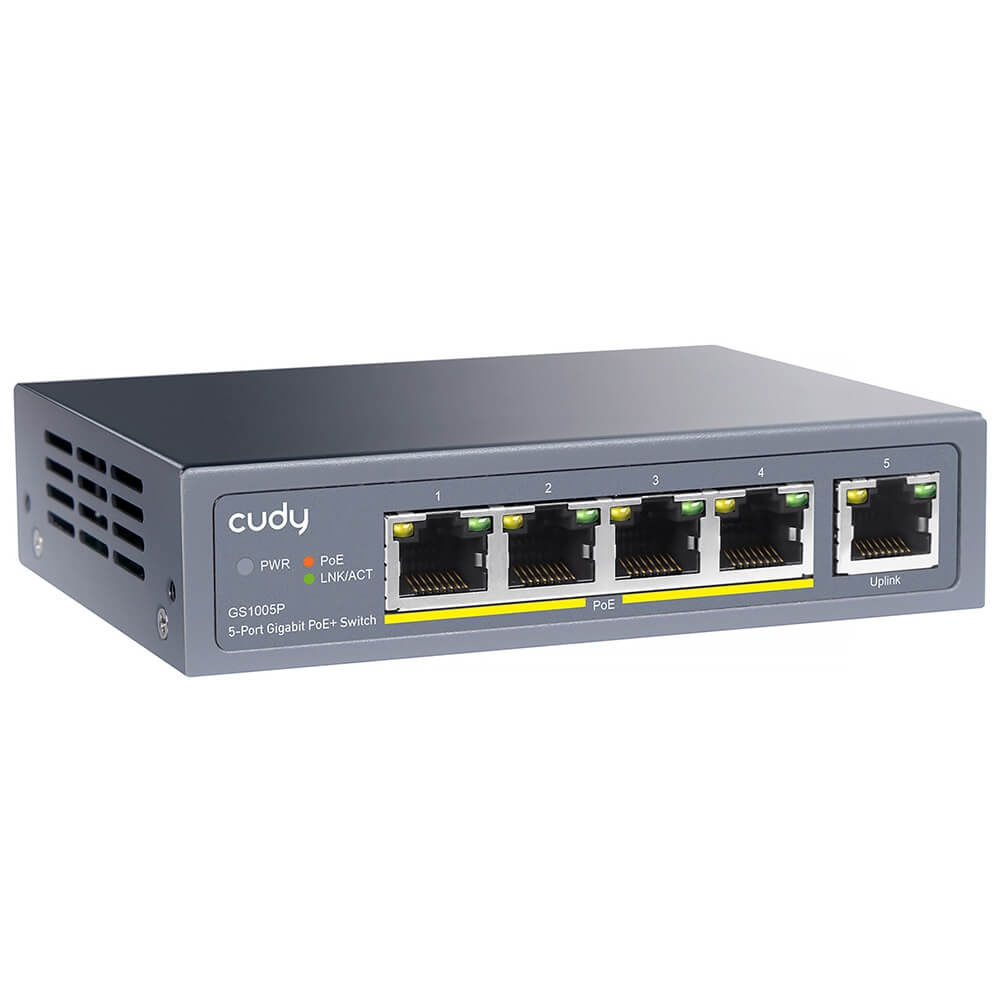

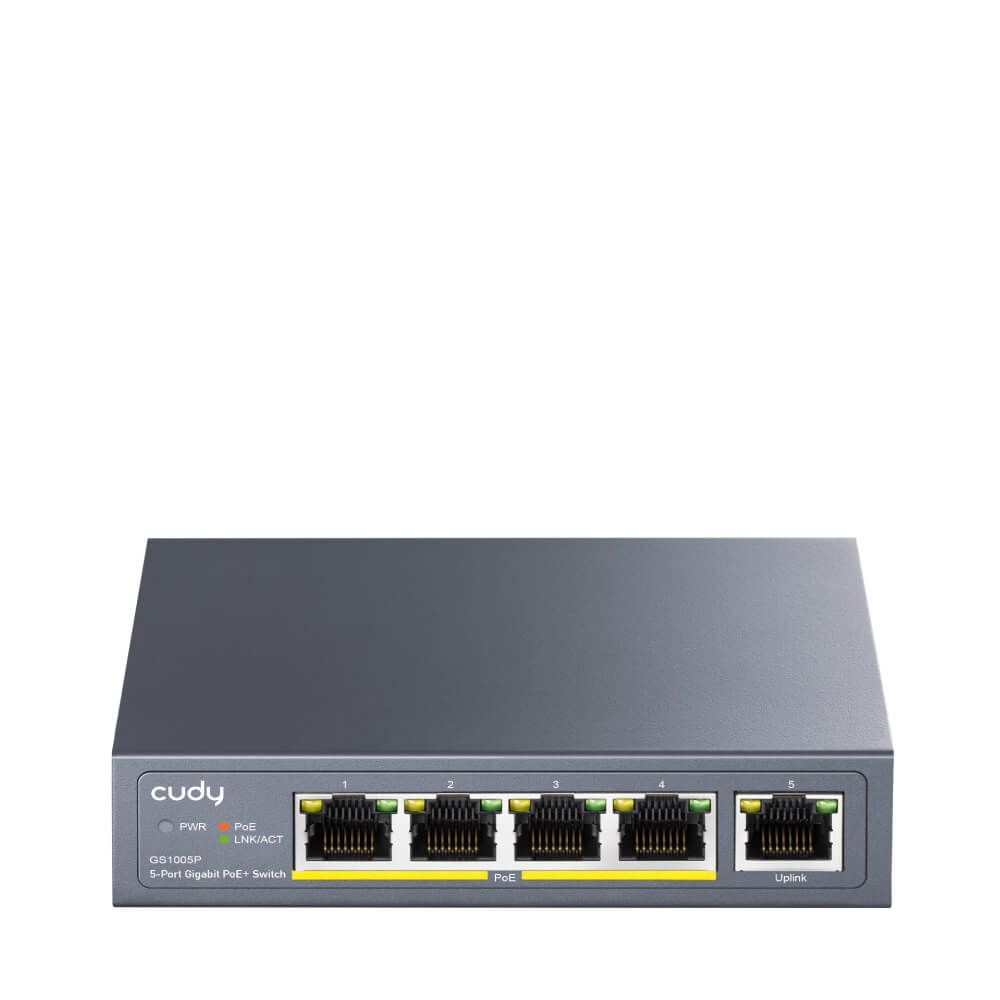

Cudy 5-Port Gigabit POE+ Switch
- Provides 5 10/100/1000Base-TX ports
- 60W PoE power output total
- High back-plane bandwidth 10Gbps
- IEEE802.3x Flow control
- EMI standards complies with FCC, CE class B
Supports 60W total PoE power and up to 30W for one PoE port.Auto detect power device; will not burned non-standard PoE device or normal PoE switch. Complies with IEEE802.3af/at Standard.
The switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. For its total, non-blocking throughput, each cudy switch supports up to 5 Gbps with a switching capacity of 10 Gbps.
Plug and Play, Easy of use.Fanless design for silent operation.Made of high-quality metal case, sturdy and durable with long service life, provide better heat dissipation, suitable for most environment. Pin assignment, Mode A: 1/2(+),3/6(-).
Conforms to IEEE802.3, IEEE 802.3u, IEEE 802.3ab,IEEE802.3af, IEEE802.3at.
Works with IP Cameras for home and office, small business.
Works with VoIP phones for business conference.
Works with WiFi APs for office and business
For more information, see the downloadable pdf under the product media.
